te connectivity / amp

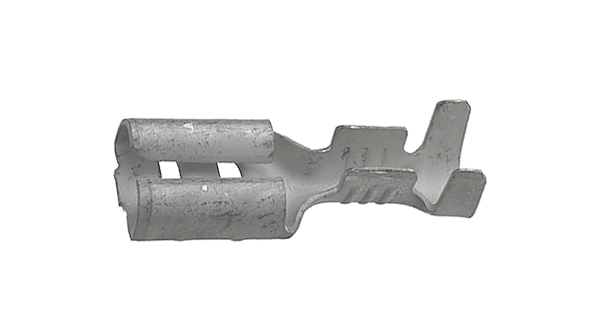

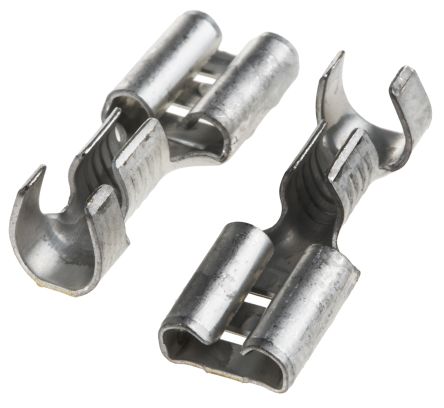

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Terminals |
| RoHS | RoHS Compliant |
| 产品 | Faston Terminals |
| 系列 | 250 |
| 线规 | 14-12 |
| 梭哈/标签大小 | 0.25 in x 0.032 in |
| 绝缘 | Not Insulated |
| 性别 | Female |
| 工厂包装数量 | 500 |
| 标签飞度（毫米） | 6.35 x 0.81 [.250 x .032] |
| 绝缘技术支持 | Insulation Support |
| 焊接片 | Without |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 表面处理 | Tin |
| 品牌 | AMP |
| 材质 | Brass |
| UL认证 | Listed |
| Wire Range (mm (AWG)) | 2.00-3.00² [14-12] |
| 绝缘直径（毫米（ ） ） | 4.06 [.160] Max. |
| 行 | Premier |
| 产品类型 | Receptacle |
| 供密封针座接线片 | No |
| CSA认证 | Yes |
| 包装方式 | Loose Piece |
| WireCable类型 | Stranded |
| 插入力 | Normal |
| 插座样式 | Straight |
| 厚度（毫米（ ） ） | 0.46 [0.018] |
| 压接形式 | F-Crimp |
| RoHSELV符合记录 | Always was RoHS compliant |
| 片厚度 | 0.032" (0.81mm) |
| 片宽度 | 0.250" (6.35mm) |
| 安装类型 | Free Hanging (In-Line) |
| 长度 - 总体 | 0.815" (20.70mm) |
| 触点表面涂层 | Tin |
| 封装 | Bulk |
| 绝缘直径 | 0.160" (4.06mm) |
| 标准包装 | 500 |
| 端子 | Crimp |
| 触点材料 | Brass |
| 终端类型 | Standard |
| RoHS指令 | Lead free / RoHS Compliant |
| 连接器类型 | Quick Disconnect Terminal |
| 触点电镀 | Tin |
| 长度 | 0.813in |
| 线径规格 | 14 → 12 AWG |
| Insulator Colour | :- |
| 端接方式 | :Crimp |
| 梭哈/标签大小 | :6.3mm x 0.8mm |
| Wire Size AWG Min | :14AWG |
| Wire Size AWG Max | :10AWG |
| 绝缘材料 | :- |
| Cable Diameter Max | :5.08mm |
| Cable Diameter Min | :3.81mm |
| 颜色 | :Tin |
| Operating Temperature Max | :105°C |
| Wire Area Size Max | :3.31mm² |
| Wire Area Size Min | :2.08mm² |
| Wire Size (AWG) | :14AWG to 12AWG |
| Wire Size Range (AWG) | :14-12 |
| Weight (kg) | 0.09 |
| Tariff No. | 85369010 |
| Electrical mounting | crimped |
| Mechanical mounting | for cable |
| 宽度 | 6.3mm |
| Multiplicity | 1 |
| Spatial orientation | straight |
| 厚度 | 0.8mm |
| Gross weight | 0.98 g |
| Ferrule variant | non-insulated |
| Terminal kind | female |
| Wire cross section | 2...3mm2 |
| 接触镀层 | tinned |
| spg | 1 |
| Collective package [pcs] | 1 |
| Terminal type | flat |
| Contact material | brass |
