TE Connectivity / Holsworthy

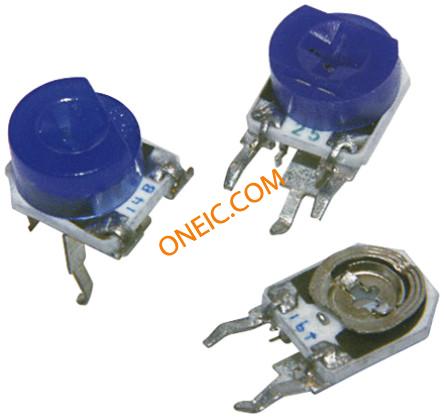

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 8.1mm |
| 外形尺寸 | 6.8 x 8.1 x 7.8mm |
| 身高 | 7.8mm |
| 长度 | 6.8mm |
| 最高工作温度 | +100°C |
| 最大阻力 | 2kΩ |
| 最低工作温度 | -25°C |
| 安装类型 | Through Hole |
| 圈数 | 1 |
| 额定功率 | 1/5W |
| 温度系数 | ±250ppm/°C |
| 端接类型 | Pin |
| 容差 | ±20% |
| 工厂包装数量 | 500 |
| 产品 | Trimmer Resistors - Single Turn |
| 产品种类 | Trimmer Resistors - Through Hole |
| 元素类型 | Cermet |
| 电阻 | 2 kOhms |
| 封装 | Bulk |
| 产品类型 | Single Turn |
| 系列 | 416 |
| 调整 | Top Crossed |
| 零件号别名 | 1623894-8 |
| RoHS | RoHS Compliant |
| 标准包装 | 500 |
| Track Resistance | :2kohm |
| No. of Turns | :1 |
| 电阻公差 | :± 25% |
| Potentiometer Mounting | :Through Hole |
| 调节型 | :Top |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-20°C |
| 工作温度范围 | :-20°C to +100°C |
| Resistor Element Material | :Cermet |
| 终端类型 | :PCB Terminals |
| Track Taper | :Linear |
| 额定电压 | :100V |
| Weight (kg) | 0.0005 |
| Tariff No. | 85334010 |
| Brand/Series | 416Series |
| Material,Element | Cermet |
| MountingType | PCB |
| NumberofTurns | 1 |
| Power,Rating | 0.2W |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
