te connectivity / amp

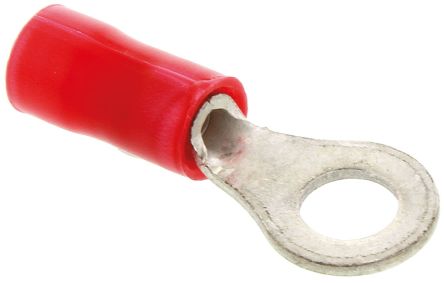

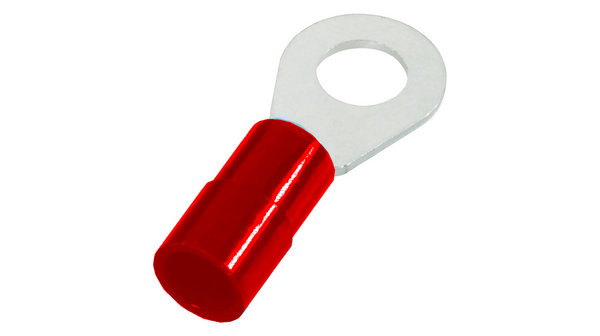

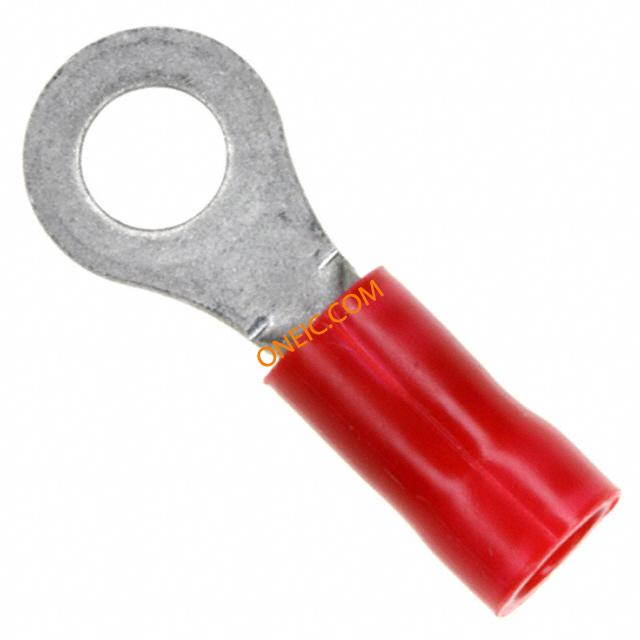

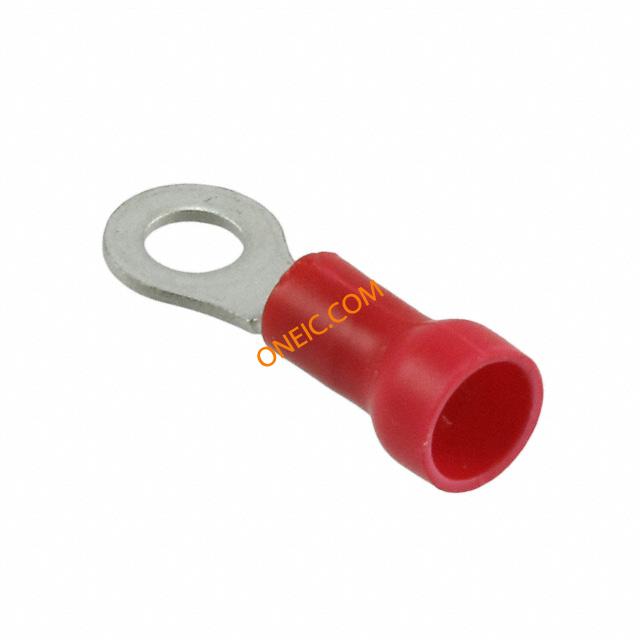

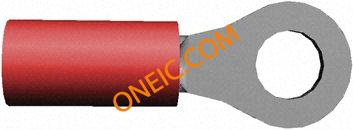

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Ring Tongue Terminal |
| 螺栓尺寸 | 4.17 mm |
| 线径规格 | 16-22 AWG |
| 标准包装 | Bulk |
| 产品种类 | Terminals |
| RoHS | RoHS Compliant |
| 产品 | Ring Terminals |
| 系列 | 148 |
| 线规 | 22-16 |
| 梭哈/标签大小 | 8 (M4) |
| 绝缘 | Insulated |
| 颜色 | Red |
| 性别 | Female |
| 触点电镀 | Tin |
| 触点材料 | Copper |
| 绝缘材料 | Vinyl |
| 材质 | Copper |
| 封装 | Bulk |
| 工厂包装数量 | 1000 |
| 额定电压 | 600 VAC |
| 绝缘技术支持 | Insulation Support |
| 插座样式 | Straight |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| 舌片材料厚度（毫米） | 0.84 [0.033] |
| Lead Free Solder Processes | Not relevant for lead free process |
| 表面处理 | Tin |
| 品牌 | AMP |
| Wire Range (mm (AWG)) | 0.30-1.40² [22-16] |
| 绝缘直径（毫米（ ） ） | 2.67-3.56 [.105-.140] |
| 体风格 | PLASTI-GRIP |
| 电压（VAC ） | 600 |
| 包装方式 | Loose Piece |
| 端子形状 | Ring Tongue |
| 绝缘套管材料 | Vinyl |
| WireCable类型 | Regular Wire |
| 重型 | No |
| GovernmentIndustry资格 | No |
| 形状 | RING-043 |
| 螺钉直径（毫米） | 4.17 [0.164] |
| RoHSELV符合记录 | Always was RoHS compliant |
| Wire Range (CMA) | 509 â 3,260 |
| 梭哈/标签大小 | 8 Stud |
| 长度 - 总体 | 0.856" (21.74mm) |
| 产品特点 | Serrated Termination |
| 安装类型 | Free Hanging (In-Line) |
| 终端类型 | Circular |
| 绝缘直径 | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) |
| 宽度 - 外边 | 0.312" (7.92mm) |
| 厚度 | 0.031" (0.79mm) |
| 材料 - 绝缘体 | Poly-Vinyl Chloride (PVC) |
| 端子 | Crimp |
| 触点表面涂层 | Tin |
| 其他名称 | A0957 |
| RoHS指令 | Lead free / RoHS Compliant |
| 颜色 | Red |
| 总长 | 21.74mm |
| 弧度硬化 | No |
| 阀体材质 | Copper |
| 主体镀层 | Tin |
| 产品长度（mm ） | 21.74 mm |
| 产品厚度（毫米） | 7.92 mm |
| 连接器类型 | :Ring Tongue |
| Insulator Colour | :Red |
| 端接方式 | :Crimp |
| Wire Size AWG Min | :22AWG |
| Wire Size AWG Max | :16AWG |
| 绝缘材料 | :PVC (Polyvinyl Chloride) |
| Cable Diameter Max | :3.56mm |
| Operating Temperature Max | :90°C |
| Operating Temperature Min | :-25°C |
| Wire Area Size Max | :1.65mm² |
| Wire Area Size Min | :0.26mm² |
| Wire Size (AWG) | :22AWG to 16AWG |
| Wire Size Range (AWG) | :22-16 |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| Angle | Straight |
| Brand/Series | PLASTI-GRIP |
| ContactPlating | Tin |
| Diameter,Insulation | 0.105to0.14" |
| InsulationType | Vinyl |
| Length,Overall | 0.856" |
| Material,Contact | Copper |
| PrimaryType | Ring |
| Size,Stud | 8 |
| Width,Overall | 0.312" |
| WireSize | 22-16AWG |
| Electrical mounting | crimped |
| Mechanical mounting | for cable |
| Ring inside diameter | 4.3mm |
| Multiplicity | 1 |
| Gross weight | 0.74 g |
| Ferrule variant | insulated |
| Wire cross section | 0.3...1.4mm2 |
| Hole for screw | M4 |
| Wire size | 16...22AWG |
| Collective package [pcs] | 1000 |
| Tip type | ring terminal |
| spg | 1000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
