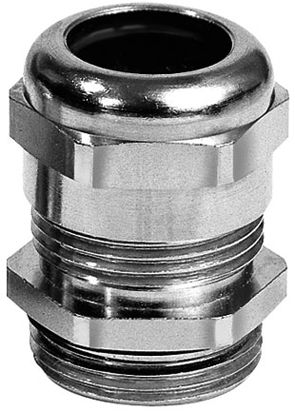

图片仅供参考,产品以实物为准
| 规格书 |
 1102770 Drawing ASS'Y CABLE GLAND SERIES HUT-MS, METRIC 3D PDF D4000 and D5000 Series Dynamic Connectors 1-1773732-4_DYNAMIC_SERIES_CATALOG_ENGLISH |
| 文档 |
3-1102770-2 Statement of Compliance RoHS 2 Statement 3-1102770-2.pdf |
| Rohs | Lead free / RoHS Compliant |
| RoHS信息 | 3-1102770-2 Statement of Compliance |
| 三维模型 | 3-1102770-2.pdf |
| 标准包装 | 1 |
| 附件类型 | Cable Gland |
| 规格 | M32 Thread |
| 等级 | IP68 - Dust Tight, Waterproof |
| 类型 | Cable Fitting |
| 标准包装 | Bulk |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 防腐蚀 | Yes |
| 包装方式 | Loose Piece |
| 包装数量 | 10 |
| 螺纹尺寸 | M32 |
| Cable Diameter Range (mm in) | 15.00 â 21.00 [0.591 â 0.827] |
| 产品类型 | Cable Fitting - Metal |
| RoHSELV符合记录 | Always was RoHS compliant |
| 产品规格 | M32 Thread |
| 评分 | IP68 - Dust Tight, Waterproof |
| 附件类型 | Cable Gland |
| 配用/相关产品 | Multiple Series |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 10 |
| 零件号别名 | 512-7717 |
| 产品种类 | Heavy Duty Power Connectors |
| RoHS | RoHS Compliant |
| Cable Diameter Min - Metric | :15mm |
| Cable Diameter Max - Metric | :21mm |
| Cable Diameter Min - Imperial | :0.59" |
| Cable Diameter Max - Imperial | :0.83" |
| Thread Size - Imperial | :- |
| Thread Size - Metric | :M32 |
| Cable Gland Material | :Brass |
| Gland Colour | :Nickel |
| IP / NEMA Rating | :IP68 |
| 电缆直径 | :21mm |
| Cable Diameter Max | :21mm |
| Cable Diameter Min | :15mm |
| 适用于 | :HTS Heavy Duty Connectors |
| 材质 | :Brass |
| 系列 | :AMP Dynamic |
| Weight (kg) | 0.018 |
| Tariff No. | 85369010 |
| associated | 1106450-2 3-1102771-2 |
| usewith | 1106433-3 1106434-2 1106468-2 1106465-5 1106452-5 1106456-1 More> |
