te connectivity / amp

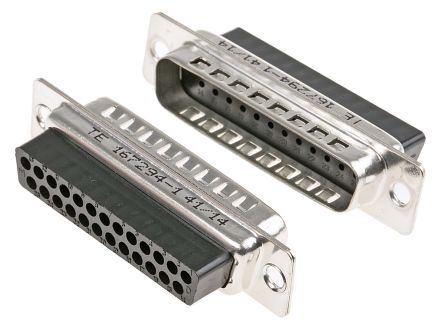

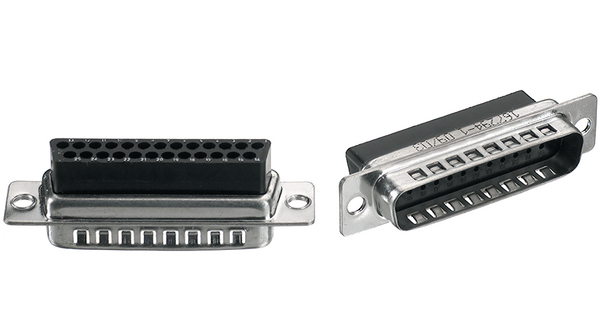

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 触点数 | 25 |
| 行数 | 3 |
| 性别 | PL |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Standard Connectors |
| RoHS | RoHS Compliant |
| 位置/触点数 | 25 |
| 安装风格 | Wire |
| 端接类型 | Crimp |
| 外壳材质 | Steel |
| 外壳电镀 | Tin |
| 外壳尺寸 | 3 |
| 工厂包装数量 | 50 |
| 联系方式 | Without |
| 将可燃性等级 | UL 94V-0 |
| 配合连接器锁扣类型 | Mounting Holes |
| 位置数 | 25 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 产品系列 | HDP-20 (Crimp Snap) |
| 等级 | Standard |
| 产品类型 | Connector |
| 触点尺寸 | 20 |
| 包装数量 | 50 |
| 接地齿 | With |
| 插入材料 | Nylon |
| 接线方式 | Crimp Snap |
| 颜色 | Black |
| 外壳类型 | Front Metal Shell |
| RoHSELV符合记录 | Always was RoHS compliant |
| 配合锁扣 | With |
| 外壳尺寸，连接器布局 | 3 (DB, B) |
| 封装 | Bulk |
| 法兰特点 | Housing/Shell (Unthreaded) |
| 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Male Contacts |
| 外壳材料，表面处理 | Steel, Tin Plated |
| 注 | Contacts Not Provided |
| 触点类型 | Signal |
| 连接器类型 | D-Sub |
| 绝缘材料 | Polyamide (PA), Nylon, Glass Filled |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 17.65mm |
| 外形尺寸 | 53 x 12.55 x 17.65mm |
| 外壳材料 | Steel |
| 长度 | 53mm |
| 最高工作温度 | 105°C |
| 最低工作温度 | -55°C |
| 系列 | Amplimite |
| 宽度 | 12.55mm |
| No. of Positions | :25 |
| 适用于 | :25 Position D Sub Contacts |
| Connector Shell Size | :DC |
| Connector Body Material | :Metal |
| D Sub Shell Size | :DC |
| DC Current Max | :3.7A |
| Weight (kg) | 0.008 |
| Tariff No. | 85369010 |
| Mechanical mounting | for cable |
| D dimension | 53mm |
| C dimension | 47mm |
| Multiplicity | 1 |
| Connector variant | w/o terminals |
| Connector type | male |
| A dimension | 39mm |
| Gross weight | 8.24 g |
| 针数 | 25 |
| B dimension | 8.4mm |
| H dimension | 10.7mm |
| Dimension G | 12.6mm |
| spg | 50 |
| Collective package [pcs] | 50 |
| Contact material | copper alloy |
