Fairchild Semiconductor

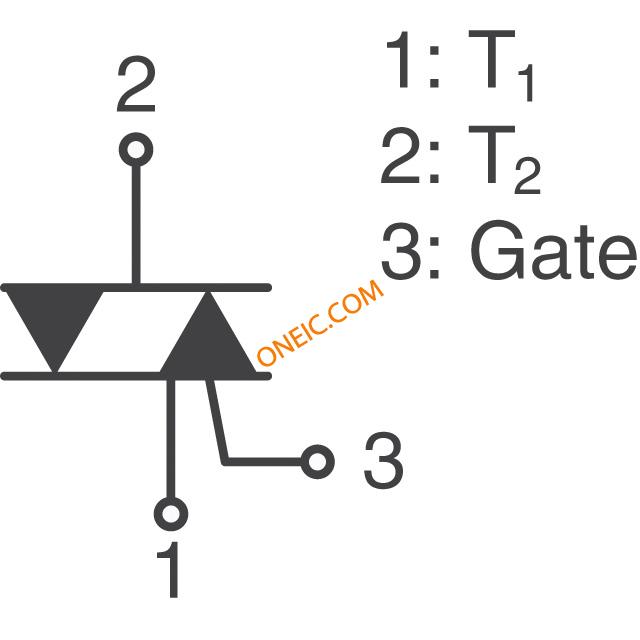

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Repetitive Peak Reverse Voltage | 800 |
| 安装 | Through Hole |
| Surge Current Rating | 33 |
| Maximum Gate Trigger Voltage | 1.5 |
| Package Width | 4.7 |
| PCB | 3 |
| 类型 | TRIAC |
| Peak On-State Voltage | 1.5@4.5A |
| 欧盟RoHS指令 | Compliant |
| Maximum Holding Current | 30 |
| Repetitive Peak Forward Blocking Voltage | 800 |
| 最低工作温度 | -40 |
| 供应商封装形式 | TO-220F |
| 标准包装名称 | TO-220F |
| 最高工作温度 | 125 |
| Package Length | 10.16 |
| Operating Junction Temperature | -40 to 125 |
| 引脚数 | 3 |
| Maximum Gate Trigger Current | 20 |
| Package Height | 15.87 |
| Repetitive Peak Off-State Current | 0.02 |
| 封装 | Rail |
| 标签 | Tab |
| 铅形状 | Through Hole |
| RoHS指令 | Lead free / RoHS Compliant |
| 电流 - 栅极触发 (Igt)（最大值） | 20mA |
| 电压 - 断态 | 800V |
| 电流 - 不重复浪涌 50、60Hz (Itsm) | 30A, 33A |
| 电压 - 栅极触发 (Vgt)（最大值） | 1.5V |
| 配置 | Single |
| 电流 - 通态 (It (RMS))（最大值） | 3A |
| 封装/外壳 | TO-220-3 Full Pack |
| 电流 - 保持 (Ih)（最大值） | 30mA |
| 三端双向可控硅类型 | Standard |
