Alpha Wire

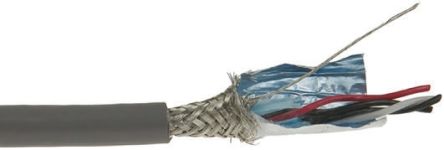

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Multi-Paired Cables |
| RoHS | RoHS Compliant |
| 线规 - AWG | 24 |
| 对数 | 2 |
| 搁浅 | 10 x 34 |
| 屏蔽 | Shielded |
| 长度 | 100 ft |
| 额定电压 | 300 V |
| 护套材质 | Polyvinyl Chloride (PVC) |
| 绝缘材料 | Polyvinyl Chloride, Semi-Rigid (S-R PVC) |
| 类型 | Automation and Process Control |
| 外套颜色 | Gray (Slate) |
| 导体材料 | Tinned Copper |
| 产品特点 | Applications include: Machine tools, auto assembly, conveyor systems, sensor/actuator controllers |
| 外直径6mm | 6.6 mm |
| 封装 | Spool |
| 系列 | 8660 |
| 屏蔽覆盖范围 | 100%, 85% |
| 评分 | UL Style 2661 |
| 套管直径 | 0.260" (6.60mm) |
| 标准包装 | 1 |
| 线规 | 24 AWG |
| 屏蔽材料 | Aluminum; Copper, Tinned |
| 屏蔽类型 | Foil, Braid |
| 电缆类型 | Multi-Pair |
| 导线数 | 4 (2 Pair Twisted) |
| 导体绞合线 | 10/34 |
| 护套材料 | Poly-Vinyl Chloride (PVC) |
| 颜色 | Slate |
| 绝缘 | Poly-Vinyl Chloride (PVC) |
| 工作温度 | -10°C ~ 105°C |
| 护套厚度 | 0.040" (1.02mm) |
| 电压 | 300V |
| RoHS指令 | Lead free / RoHS Compliant |
| 单位重量 | 4.100 lbs |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| 局域网类型 | :- |
| No. of Pairs | :2 |
| Conductor Size AWG | :24AWG |
| Jacket Colour | :Grey |
| No. of Max Strands x Strand Size | :10 x 0.16mm |
| External Diameter | :6.6mm |
| Conductor Area CSA | :0.23mm² |
| SVHC | :No SVHC (20-Jun-2013) |
| Bend Flexing Radius Min | :15 X Cable Diameter |
| Complex Cable Make-Up | :4 x 10/0.16 |
| Conductor Make-up | :10 / 0.16mm |
| No. of Cores | :4 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :5°C |
| 外径 | :6.6mm |
| Primary Insulation Thickness | :0.25mm |
| Secondary Insulation Colour | :Grey |
| Secondary Insulation Material | :PVC |
| Secondary Insulation Thickness | :1mm |
| Voltage Rating V AC | :300V |
| 线径规格 | :24AWG |
| Weight (kg) | 1.9 |
| Tariff No. | 85444995 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
