Alpha Wire

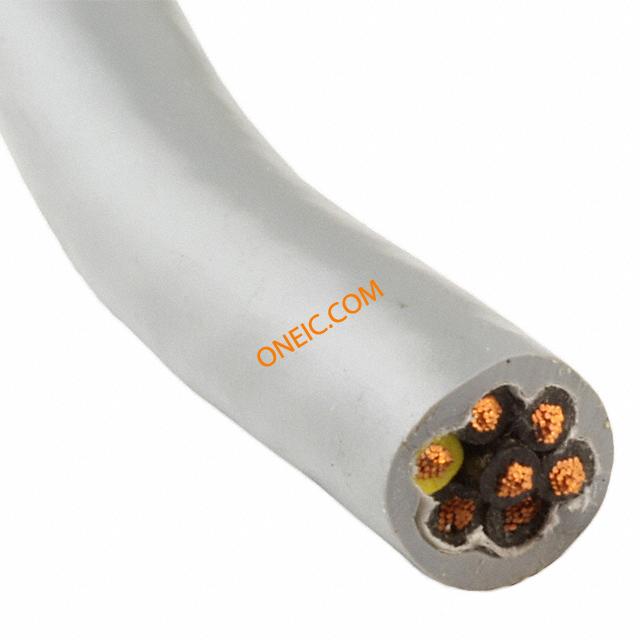

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Multi-Conductor Cables |
| RoHS | RoHS Compliant |
| 导线数 | 7 |
| 线规 - AWG | 16 |
| 搁浅 | 26 x 30 |
| 屏蔽 | Unshielded |
| 长度 | 100 ft |
| 额定电压 | 600 V |
| 护套材质 | Polyvinyl Chloride (PVC), Oil Resistant |
| 类型 | Xtra-Guard |
| 产品特点 | Automation Equipment |
| 外套颜色 | Gray |
| 外直径6mm | 9.65 mm |
| 封装 | Spool |
| 系列 | 6560 |
| 评分 | UL Style 2587 |
| 套管直径 | 0.390" (9.91mm) |
| 标准包装 | 1 |
| 线规 | 16 AWG |
| 电缆类型 | Multi-Conductor |
| 导体绞合线 | 26/30 |
| 导体材料 | Copper, Bare |
| 护套材料 | Poly-Vinyl Chloride (PVC) |
| 颜色 | Slate |
| 绝缘 | Poly-Vinyl Chloride (PVC) |
| 工作温度 | -40°C ~ 90°C |
| 护套厚度 | 0.035" (0.89mm) |
| 电压 | 600V |
| RoHS指令 | Lead free / RoHS Compliant |
| 单位重量 | 11 lbs |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| No. of Conductors | :7 |
| Conductor Size AWG | :16AWG |
| No. of Max Strands x Strand Size | :26 x 0.255mm |
| Conductor Area CSA | :1.32mm² |
| Jacket Colour | :Slate |
| External Diameter | :9.7mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Conductor Make-up | :26 / 30AWG |
| No. of Cores | :7 |
| 外径 | :9.7mm |
| 屏蔽类型 | :Unshielded |
| 线径规格 | :16AWG |
| Weight (kg) | 1 |
| Tariff No. | 85444995 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
