Panasonic Electric Works

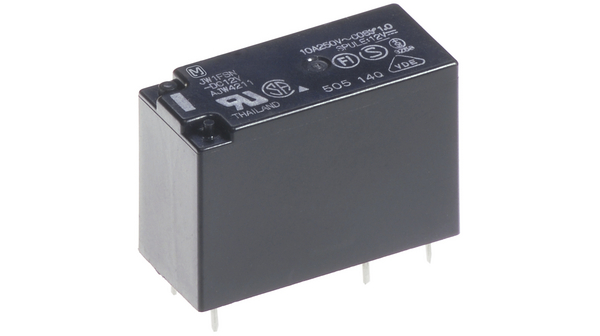

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | General Purpose Relays |
| RoHS | RoHS Compliant |
| 触点形式 | 1 Form A (SPST-NO) |
| 线圈电压 | 48 V |
| 封装 | Bulk |
| 工厂包装数量 | 100 |
| 线圈电流 | 11mA |
| 开启电压（最大值） | 33.6 VDC |
| 产品特点 | Sealed - Fully |
| 线圈类型 | Non Latching |
| 关闭电压（最小值） | 4.8 VDC |
| 线圈功率 | 530 mW |
| 继电器类型 | General Purpose |
| 端接类型 | PC Pin |
| 切换电压 | 250VAC, 30VDC - Max |
| 释放时间 | 5ms |
| 工作温度 | -40°C ~ 60°C |
| 操作时间 | 15ms |
| 触点额定值（电流） | 10A |
| 标准包装 | 100 |
| 安装类型 | Through Hole |
| 触点材料 | Silver Tin Oxide (AgSnO) |
| 线圈电阻 | 4.4 kOhms |
| RoHS指令 | Lead free / RoHS Compliant |
| Initial contact resistance, max (By voltage drop 6 V DC 1 A) | 100 mohm |
| Min switching capacity | 100 mA, 5 V DC |
| Max operating speed (at rated load) | 6 cpm |
| 操作功能 | Single Side Stable |
| Drop-out voltage (min) | 4.8 VDC |
| Max switching power | 2,500 VA, 300 W |
| Unit weight | Approx. 13 g .46 oz |
| Initial breakdown voltage - Between contacts and coil | 5,000 Vrms for 1 min. |
| Expected life (min ope) - Mechanical (at 180 cpm) | 510^6 |
| 电流 | 10 Amps |
| Initial breakdown voltage - Between contact sets | 3,000 Vrms for 1 min. (2 Form A, 2 Form C) |
| Nominal switching capacity | 10 A 250 V AC, 10 A 30 V DC |
| Coil resistance, (10%) | 4400 W |
| Initial insulation resistance | Min. 1,000 Mohm at 500 V DC |
| 安装 | PC Board |
| Operate time (at nominal voltage) | Max. 15 ms |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 1,000 Vrms for 1 min. |
| Ambient temp | 40C to +85C, 40F to +185F |
| Initial surge voltage between contacts and coil | Min. 10,000 V |
| Expected life (min ope) - Electrical (at 6 cpm) (Resistive load) | 10^5 |
| Destructive Shock Resistance | Min. 980 m/s^2 {100 G} |
| Contact material | Silver alloy |
| Temperature rise (at 20C) (at nominal voltage) (with nominal coil voltage and at nominal switching capacity) | 1a: max. 45C 1c: max. 55C (resistance method |
| Pick-up voltage (max) | 33.6 VDC |
| Release time (without diode) (at nominal voltage) | Max. 5 ms |
| SubCategory | General Purpose Relay |
| Nominal operating power | 530 mW |
| Max switching current | 10 A |
| 湿度 | 5 to 85% R.H. |
| Functional Shock Resistance | Min. 98 m/s^2 {10 G} |
| 联系配置 | 1A SPST-NO |
| Contact capacity | High capacity (10 A) types |
| Destructive Vibration resistance | Approx. 117.6 m/s^2 {12 G}, 10 to 55 Hz at double amplitude of 2.0 mm |
| Max switching voltage | 250 V AC, 30 V DC |
| Nominal operating current, (10%) | 11 mA |
| Max allowable voltage | 130% V of Nominal Voltage (at 60C 140F), 120% V of Nominal Voltage (at 85C 185F) |
| Functional Vibration resistance | Approx. 98 m/s^2 {10 G}, 10 to 55 Hz at double amplitude of 1.6 mm |
| Dimensions L x W x H | 28.6 x 12.8 x 20 mm |
| Ucoil | 48 |
| Rcoil | 4400 |
| Switching voltage | 250 |
| 联系方式 | 1 make contact (NO) |
| Pcoil | 530 |
| Switching current | 10 A@ 250 VAC |
| Relay type | Monostable |
| Switching capacity | 2500 VA |
| Temperature range | -40...+85 °C |
| Protection rating | IP 67 |
