on semiconductor

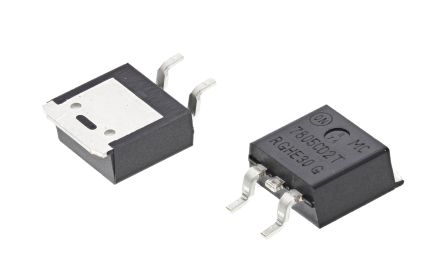

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 3D2PAK |
| 极性 | Positive |
| 类型 | Linear |
| 输出数 | 1 |
| 最大输入电压 | 35 V |
| 最大输出电流 | 1(Min) A |
| 输出电压 | 5 V |
| 典型漏失电压@电流 | 2@1A V |
| 准确性 | ±4 % |
| 线路调整 | 20 mV |
| 负载调整率 | 25 mV |
| 最大静态电流 | 6.5 mA |
| 工作温度 | 0 to 125 °C |
| 安装 | Surface Mount |
| 输出类型 | Fixed |
| 标准包装 | Tape & Reel |
| 标准包装 | Cut Tape |
| 封装 | Tape & Reel (TR) |
| 稳压器拓扑结构 | Positive Fixed |
| 安装类型 | Surface Mount |
| 稳压器数量 | 1 |
| 供应商设备封装 | D2PAK |
| 电压 - 输出 | 5V |
| 电压 - 压降（标准） | 2V @ 1A |
| 电流 - 输出 | 1A |
| 封装/外壳 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| 电压 - 电压 | Up to 35V |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | MC7805CD2TR4GOSCT |
| 外形尺寸 | 10.24 x 9.35 x 30.02mm |
| 身高 | 30.02mm |
| 长度 | 10.24mm |
| 最高工作温度 | +125 °C |
| 最低工作温度 | 0 °C |
| 包装类型 | D2PAK |
| 引脚数 | 3 |
| 静态电流 | 3.2mA |
| 宽度 | 9.35mm |
| 产品种类 | Voltage Regulators - Standard |
| 输出电流 | 1 A |
| 工厂包装数量 | 800 |
| PSRR /脉动抑制 - 典型值比 | 83 dB |
| 安装风格 | SMD/SMT |
| 最大输入电压 | 35 V |
| RoHS | RoHS Compliant |
| 输入电压最小 | 7 V |
| 工作温度范围 | 0C to 125C |
| 稳压器输出类型 | Fixed |
| 电压稳压器类型 | Linear |
| 极性类型 | Positive |
| Output Voltage Accuracy | �4 % |
| 工作温度分类 | Commercial |
| 输入电压（最大值） | 35 V |
| 静态电流（最大值） | 6.5 mA |
| 拓扑结构 | Standard |
| 弧度硬化 | No |
| 漏失电压@电流（典型值） | 2@1A |
| 输入电压 | 35 V |
| Input Voltage Min | :10V |
| Input Voltage Max | :35V |
| Output Voltage Nom. | :5V |
| Voltage Regulator Case Style | :TO-263 |
| No. of Pins | :3 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (16-Dec-2013) |
| Accuracy % | :4% |
| No. of Outputs | :1 |
| 工作温度范围 | :0°C to +125°C |
| Output Voltage Max | :5V |
| Primary Input Voltage | :10V |
| Supply Voltage Max | :20VDC |
| Supply Voltage Min | :7VDC |
| 端接类型 | :SMD |
| Weight (kg) | 0.003 |
| Tariff No. | 85423990 |
| Current,Output | 2.2A |
| Current,Supply | 3.2mA |
| PackageType | D2PAK |
| Regulation,Line | 0.5mV |
| Regulation,Load | 1.3mV |
| RegulatorType | PositiveVoltageOut |
| Resistance,Thermal,JunctiontoCase | 5°C/W |
| Temperature,Operating,Range | 0to+125°C |
| Voltage,Dropout | 2VDC |
| Voltage,Noise | 10μV/V |
| Voltage,Output | 5V |
| Voltage,Supply | 35V |
| 案例 | D2PAK |
| 输出电流 | 1A |
| Integrated circuit type | voltage stabiliser |
| Kind of voltage regulator | LDO, fixed |
| Gross weight | 0.43 g |
| 输出电压 | 5V |
| Package type | roll |
| Multiplicity | 800 |
| Collective package [pcs] | 800 |
| spg | 800 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
