Nichicon

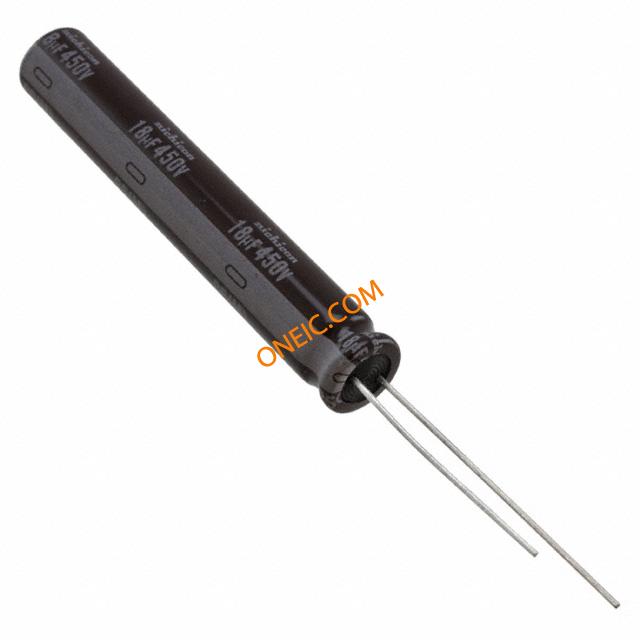

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 引线类型 | Straight |
| 电容 | 18 uF |
| 容差 | 20 % |
| 额定电压 | 450 V |
| 工作温度范围 | - 25 C to + 105 C |
| 端接类型 | Radial |
| 表壳直径 | 8 mm |
| 表壳长度 | 50 mm |
| 引线间距 | 3.5 mm |
| 产品 | General Purpose Electrolytic Capacitors |
| 封装 | Bulk |
| 系列 | CS |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 8 mm Dia. x 50 mm L |
| 负载寿命 | 10000 h |
| 损耗因数DF | 0.24 |
| 类型 | Miniature Sized, High Ripple Current, High Reliability |
| 产品范围 | :NICHICON - CS Series |
| 电容公差 | :± 20% |
| 直径 | :12.5mm |
| 身高 | :25mm |
| Capacitor Terminals | :Radial Leaded |
| Weight (kg) | 0 |
| Tariff No. | 85322200 |
| Material,Element | AluminumElectrolytic |
| 端子 | Radial |
| Voltage,Rating | 450VDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
