Ohmite

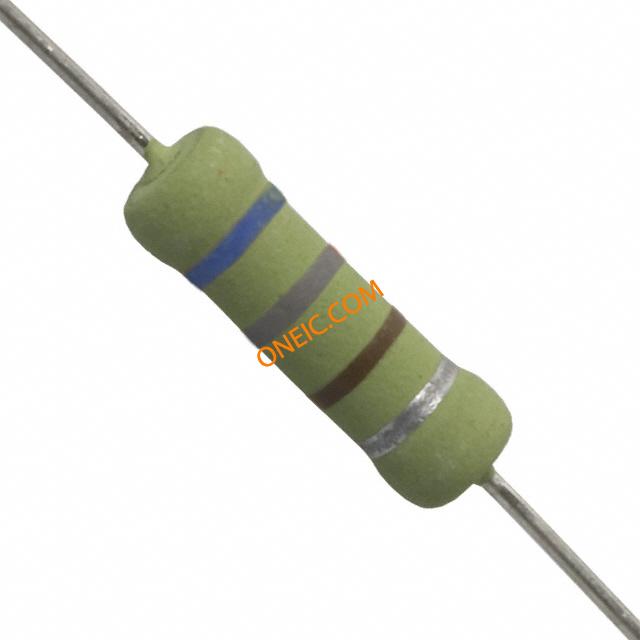

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 电阻（欧姆） | 680 |
| 产品特点 | Moisture Resistant |
| 端子数 | 2 |
| 标准包装 | 25 |
| 供应商设备封装 | Axial |
| 温度系数 | -1000/ -1600ppm/°C |
| 尺寸/尺寸 | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) |
| 功率（瓦特） | 1W |
| 封装/外壳 | Axial |
| 容差 | ±10% |
| 成分 | Ceramic |
| RoHS指令 | Compliant |
| 工厂包装数量 | 10 |
| 产品 | Resistors Ceramic Composition |
| 产品种类 | Ceramic Composition Resistors |
| 引线直径 | 0.8 mm |
| 额定电压 | 300 V |
| 系列 | OX |
| 工作温度范围 | - 40 C to + 220 C |
| 端接类型 | Axial |
| 电阻 | 680 Ohms |
| 表壳长度 | 16.5 mm |
| 额定功率 | 1 W |
| 类型 | Fixed Ceramic Resistor |
| RoHS | RoHS Compliant |
| 产品范围 | :OHMITE - OX Series |
| 电阻公差 | :± 10% |
| Resistor Case Style | :Axial Leaded |
| Resistor Element Type | :Ceramic |
| Weight (kg) | 0.00113 |
| Tariff No. | 85332100 |
| Brand/Series | OX Series |
| Diameter, Lead Wire | 0.031 in. |
| 外形尺寸 | 0.67 in. Body Length x 0.217 in. ± 0.05 in. Body Dia. |
| Length, Lead | 1.496 in. |
| Material, Element | Ceramic Composition |
| 包装类型 | Silicone Coat |
| Power Rating, Test Condition | @ +70°C |
| Power, Rating | 1 W |
| 端子 | Axial |
| Voltage, Dielectric Strength | 500 V |
| Voltage, Rating | 300 VDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
