Omron Electronics
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|

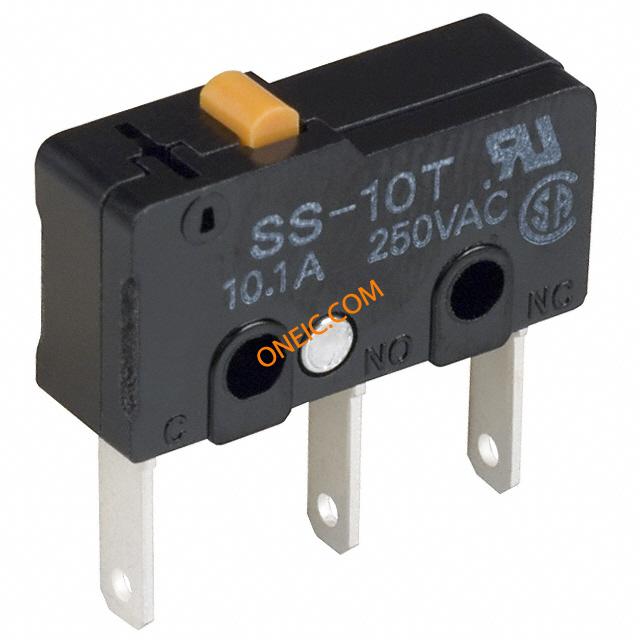

| 工业别名 | SS-10T |
| 子类别 | Switch Snap Action |
| 交货期 | 138 Days |
| 封装 | Bulk |
| Differential Travel | 0.005" (0.12mm) |
| 开关功能 | On-Mom |
| 额定电流 | 10A (AC), 4A (DC) |
| 操作力，扭矩 | 150gf |
| 安装类型 | Chassis Mount |
| 额定电压 - AC | 125V |
| 端接类型 | Quick Connect - 0.110" (2.8mm) |
| 电气寿命 | 50,000 Cycles |
| 工作职位 | 0.330" (8.4mm) |
| 超程 | 0.015" (0.4mm) |
| 工作温度 | -25°C ~ 85°C |
| 执行器类型 | Round (Pin Plunger) |
| 标准包装 | 100 |
| 额定电压 - DC | 30V |
| 防护等级 | IP40 |
| 预行程 | 0.024" (0.6mm) |
| 释放力 | 25gf |
| 机械寿命 | 10,000,000 Cycles |
| 电路 | SPDT |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 10.1 A @ 14 V dc, 10.1 A @ 250 V ac |
| 触点材料 | Silver Alloy |
| IP等级 | IP40 |
| 最高工作温度 | +85°C |
| 最低工作温度 | -25°C |
| 操作力 | 1.47 N |
| 终端类型 | Tab |
| 工厂包装数量 | 100 |
| 电压额定值AC | 250 V |
| 产品种类 | Basic / Snap Action Switches |
| 系列 | SS |
| 触点形式 | SPDT |
| 直流电额定电压 | 250 V |
| 执行器 | Plunger, Pin |
| 零件号别名 | 382475 SS10TNC |
| 类型 | Miniature |
| RoHS | RoHS Compliant |
| ActuatorType | Plunger |
| BodyStyle | Subminiature |
| ContactForm | SPDT |
| Current,Rating | 10Amps |
| DielectricStrength | 600VAC |
| MountingHoleSize | 2.4mm |
| NumberofPoles | 1 |
| 操作 | SnapAction |
| 端子 | QCTabs |
| Voltage,Rating | 125VAC |
| AC contacts rating (at resistance load) | 10 A / 250 VAC |
| Leads | 2.8x0.5mm connectors |
| Contacts configuration | SPDT |
| Switches features | without lever |
| Switching torque | 1.47N |
| Mechanical durability | 10000000cycles |
| Multiplicity | 1 |
| Electrical life | 50000cycles |
| Gross weight | 1 g |
| Stable positions number | 1-position |
| Operating temperature | -25...85°C |
| Min insulation resistance | 100MΩ |

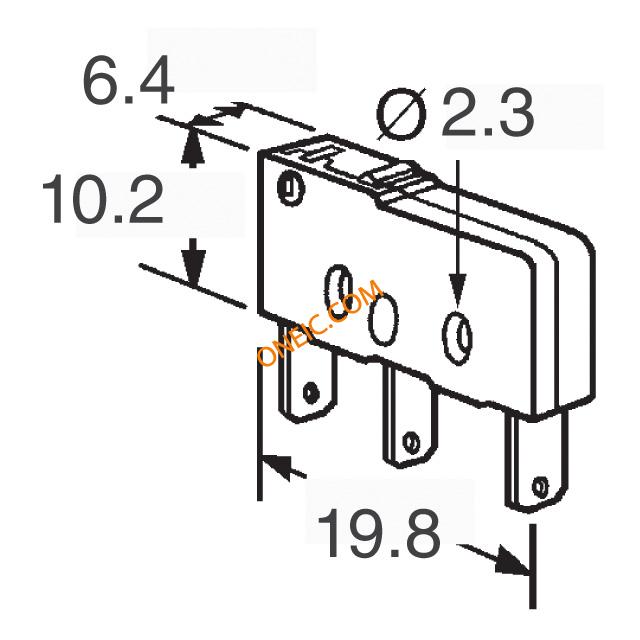

| Body dimensions | 19.8 x 6.4 x 10.2mm |
| Terminal pitch | 7.3mm |
| 密封 | IP40 |
| Switching method | ON-(ON) |
| Max contact resistance: | 30mΩ |
| Switch type | microswitch |
| SubCategory | Snap-Action Switch |
| MainCategory | Switches |
| 联系方式 | 1 change-over (CO) |
| 额定电流 | 10 AAC |
| Actuation | Plunger |
| Actuation force | 1.5 N |
| 设计 | Snap-action switch |
| Termination type | Blade Terminal 2.8 x 0.5 mm |
| 额定电压 | 250 |
| Temperature range | -25...+85 °C |
| Contact material | Ag |
| 最低工作温度 | -25°C |
| IP 防护等级 | IP40 |
| 最高工作温度 | +85°C |
| 操作力 | 1.47 N |
| 执行器类型 | 引脚柱塞 |
| 触点配置 | 单刀双掷 - 常开/常闭 |
| 工作温度范围 | -25 → +85°C |
| CAD 绘图 | 3D CAD 模型 |
| 触点材料 | 银合金 |
| 机械寿命 | 10000000Operations |
| 释放力 | 0.25N |
| 触点额定电流 | 10.1 A @ 250 V 交流 |
| 接端类型 | 翼片 |
