Omron Electronics

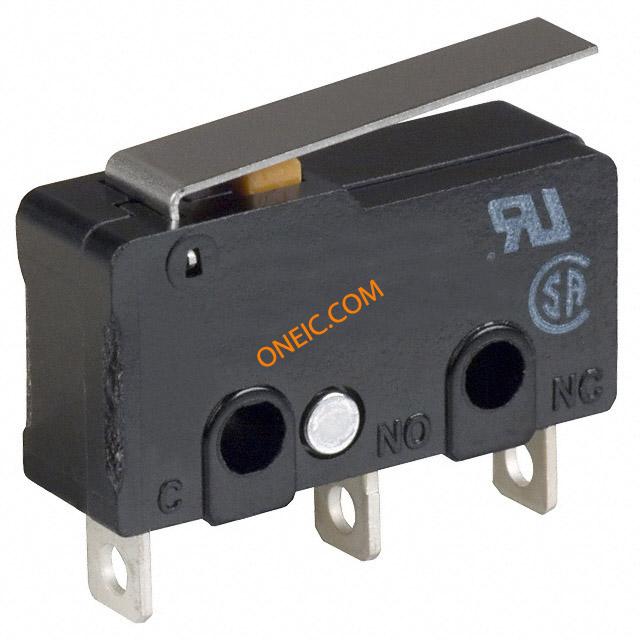

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器风格 | Hinge Lever |
| 电气寿命 | 50000 |
| 产品长度 | 19.8 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 85 |
| 最大直流额定电压 | 14 |
| 产品厚度 | 6.4 |
| 安装 | Screw Mount |
| 交换机配置 | N.O./N.C. |
| 产品高度 | 20 |
| 极掷配置 | SPDT |
| 最大交流电压额定值 | 250 |
| 操作力 | 0.49 |
| 终端类型 | Solder |
| 最低工作温度 | -25 |
| 最大额定电流 | 10.1@250VAC 14VDC |
| 机械寿命 | 10000000 |
| 执行器材质 | Stainless Steel/N/A |
| 触点材料 | Silver Alloy |
| 工业别名 | SS-10GL |
| 子类别 | Switch Snap Action |
| 交货期 | 96 Days |
| 封装 | Bulk |
| Differential Travel | 0.040" (1.0mm) |
| 开关功能 | On-Mom |
| 额定电流 | 10A (AC), 4A (DC) |
| 操作力，扭矩 | 50gf |
| 安装类型 | Chassis Mount |
| 额定电压 - AC | 125V |
| 端接类型 | Solder Lug |
| 电气寿命 | 50,000 Cycles |
| 工作职位 | 0.345" (8.8mm) |
| 超程 | 0.039" (1.0mm) |
| 工作温度 | -25°C ~ 85°C |
| 执行器类型 | Lever, Straight |
| 标准包装 | 100 |
| 额定电压 - DC | 30V |
| 防护等级 | IP40 |
| 释放力 | 6gf |
| 机械寿命 | 10,000,000 Cycles |
| 电路 | SPDT |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 10.1 A @ 14 V dc, 10.1 A @ 250 V ac |
| IP等级 | IP40 |
| 最高工作温度 | +85°C |
| 最低工作温度 | -25°C |
| 操作力 | 0.49 N |
| 工厂包装数量 | 100 |
| 电压额定值AC | 250 V |
| 产品种类 | Basic / Snap Action Switches |
| 系列 | SS |
| 触点形式 | SPDT |
| 直流电额定电压 | 250 V |
| 执行器 | Lever |
| 零件号别名 | 1436523 382462 SS10GLNC |
| 类型 | Miniature |
| RoHS | RoHS Compliant |
| Microswitch Type | :Subminiature |
| 开关操作 | :- |
| Operating Force Max | :50gf |
| Contact Voltage AC Nom | :250V |
| Contact Current Max | :10A |
| Weight (kg) | 0.00181 |
| Tariff No. | 85365005 |
| ActuatorType | FlatLever |
| BodyStyle | Subminiature |
| Brand/Series | SS-10Series |
| ContactForm | SPDT |
| Current,Rating | 10Amps |
| DielectricStrength | 600VAC |
| MountingHoleSize | 2.4mm |
| NumberofPoles | 1 |
| OperatingForce | 50g |
| 操作 | SnapAction |
| 标准 | ULListed,CSACertified |
| Temperature,Operating | -25to+85°C |
| 端子 | SolderLugs |
| Voltage,Rating | 125VAC |
| AC contacts rating (at resistance load) | 10 A / 250 VAC |
| Leads | for soldering |
| Contacts configuration | SPDT |
| Switches features | with lever |
| Switching torque | 1.47N |
| Mechanical durability | 10000000cycles |
| Multiplicity | 1 |
| Electrical life | 50000cycles |
| Gross weight | 1 g |
| Stable positions number | 1-position |
| Operating temperature | -25...85°C |
| Min insulation resistance | 100MΩ |
| Body dimensions | 19.8 x 6.4 x 10.2mm |
| Terminal pitch | 7.3mm |
| 密封 | IP40 |
| Switching method | ON-(ON) |

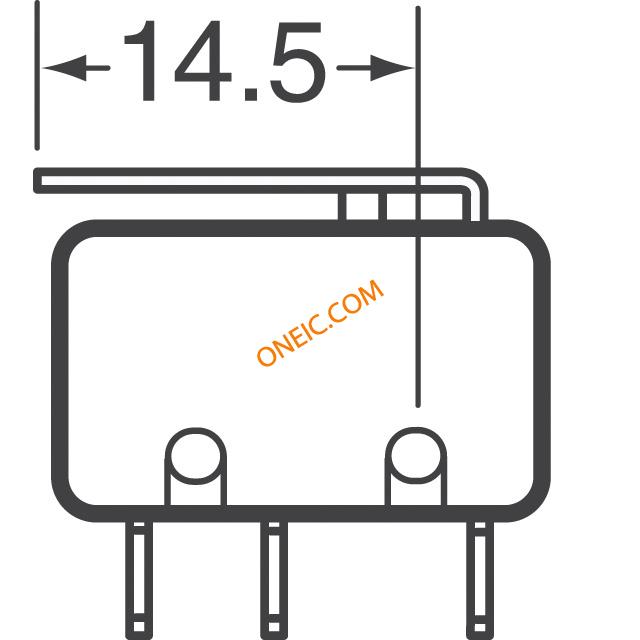

| Lever length | 14.5mm |
| Max contact resistance: | 30mΩ |
| Switch type | microswitch |
