Omron Electronics

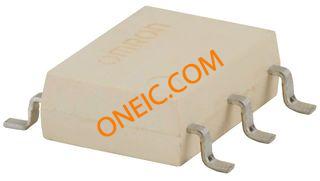

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Solid State Relays - PCB Mount |
| RoHS | RoHS Compliant |
| 控制电压范围 | 1 V to 1.3 V |
| 额定负载电压 | 80 V |
| 额定负载电流 | 1.25 A |
| 触点形式 | 1 Form A (SPST-NO) |
| 输出设备 | MOSFET |
| 封装/外壳 | SOP-6 |
| 安装风格 | SMD/SMT |
| 产品类型 | PCB Mount |
| 系列 | G3VM |
| 工厂包装数量 | 75 |
| 端接类型 | Gull Wing |
| 供应商封装形式 | SOP |
| 标准包装名称 | SOIC |
| 欧盟RoHS指令 | Compliant |
| I/O Isolation Voltage | 1500(RMS) |
| 线路安排 | 1 Form A |
| Maximum Input Current | 50 |
| 输出类型 | AC|DC |
| 最大输出电流 | 0.00125 |
| 输入类型 | DC |
| Maximum Output Voltage | 80 |
| 最高工作温度 | 85 |
| 最低工作温度 | -20 |
| 最大输入电压 | 1.3 |
| 引脚数 | 6 |
| 铅形状 | Gull-wing |
| 继电器类型 | Relay |
| 安装类型 | Surface Mount |
| 负载电流 | 1.25A |
| 电压 - 负载 | 0 ~ 80 V |
| 供应商设备封装 | 6-SOP |
| 封装 | Tube |
| 导通状态电阻 | 150 mOhm |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 75 |
| 电压 - 电压 | 1.15VDC |
| 封装/外壳 | 6-SOP (0.173", 4.40mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 输入电流 | 50 mA |
| 安装 | Surface Mount |
| 工作温度范围 | -20C to 85C |
| 包装类型 | SOP |
| 工作温度分类 | Commercial |
| 输入电压（最大值） | 1.3 V |
| 输出电压（最大值） | 80 V |
| 输入电流（最大） | 50 mA |
| 弧度硬化 | No |
| 输入电压 | 1.3 V |
| 隔离电压 | 1500 V |
| 输出电流 | 1.25 mA |
| 删除 | Compliant |
| Load Voltage Max | :80VAC |
| On State Resistance Max | :0.15ohm |
| 联系配置 | :SPST-NO |
| Forward Current If | :30mA |
| Relay Terminals | :SMD |
| SVHC | :No SVHC (20-Jun-2013) |
| Control Voltage DC Max | :1.3V |
| Control Voltage DC Min | :1V |
| Dielectric Strength Voltage Vrms | :1500V |
| 关闭时间 | :0.7ns |
| 开启时间 | :2µs |
| Weight (kg) | 0.00013 |
| Tariff No. | 85364900 |
| 电容 | 0.8pF |
| ContactForm | SPST-NO |
| CurrentRating | 1.250A |
| Current,Leakage | 1.5nA |
| Current,Rating | 1.25mA |
| 功能 | Analog-Switching |
| MountingType | SMD |
| NumberofPins | 6 |
| 包装 | SOP-6 |
| RelayType | MOSFET |
| 标准 | UL,RoHS |
| 端子 | SurfaceMount |
| Voltage,Rating | 80VAC |
| 案例 | SOP6 |
| Relay type | solid state |
| Operating current max | 1250mA |
| Multiplicity | 1 |
| Contacts configuration | SPST-NO |
| Release time | 0.7ms |
| Control current | 30mA |
| Gross weight | 1.2 g |
| Operating temperature | -20...85°C |
| Operate time | 2ms |
| Relay variant | 1-phase, MOSFET |
| Relay series | G3VM |
| Switched voltage | max 80V AC, max 80V DC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
