Omron Electronics Inc-EMC Div

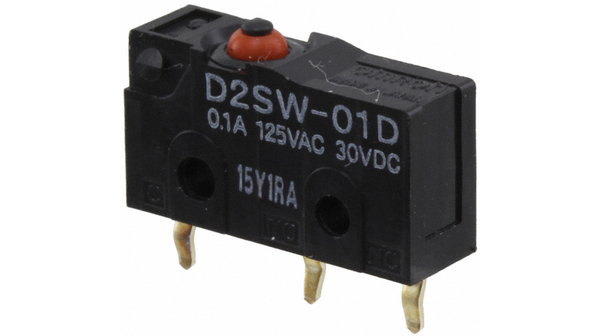

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 额定电流 | 100mA (AC/DC) |
| 操作力，扭矩 | 180gf |
| 额定电压 - AC | 125V |
| 电气寿命 | 200,000 Cycles |
| 端接类型 | PC Pin |
| 工作温度 | -40°C ~ 85°C |
| 机械寿命 | 5,000,000 Cycles |
| Differential Travel | 0.004" (0.1mm) |
| 超程 | 0.020" (0.5mm) |
| 标准包装 | 500 |
| 预行程 | 0.024" (0.6mm) |
| 开关功能 | On-Mom |
| 工作职位 | 0.330" (8.4mm) |
| 电路 | SPDT |
| 额定电压 - DC | 30V |
| 防护等级 | IP67 - Dust Tight, Waterproof |
| 安装类型 | Through Hole |
| 封装 | Bulk |
| 执行器类型 | Round (Pin Plunger) |
| 释放力 | 30gf |
| 其他名称 | D2SW01D |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 0.1 A @ 125 V ac, 0.1 A @ 30 V dc |
| 触点材料 | Gold Alloy |
| IP等级 | IP67 |
| 最高工作温度 | +85°C |
| 最低工作温度 | -40°C |
| 操作力 | 1.77 N |
| 终端类型 | PCB |
| RoHS指令 | Compliant |
| 工厂包装数量 | 500 |
| 零件号别名 | 418452 |
| 产品种类 | Basic / Snap Action Switches |
| 系列 | D2SW |
| Microswitch Type | :Subminiature |
| 执行器风格 | :Pin Plunger |
| 开关操作 | :(Not Applicable) |
| Operating Force Max | :0.59N |
| Contact Current Max | :100mA |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.003 |
| Tariff No. | 85365007 |
| AC contacts rating (at resistance load) | 0.1 A / 125 VAC |
| Leads | for PCB, self-clinching |
| Contacts configuration | SPDT |
| DC contacts rating (at resistance load) | 0.1 A / 30 VDC |
| Switching torque | 1.77N |
| Mechanical durability | 5000000cycles |
| Multiplicity | 1 |
| Switches features | without lever |
| Electrical life | 200000cycles |
| Gross weight | 1.64 g |
| Operating temperature | -40...85°C |
| 接触镀层 | gold plated |
| Stable positions number | 1-position |
| Body dimensions | 19.8 x 6.4 x 10.1mm |
| Terminal pitch | 8.8mm |
| 密封 | IP67 |
| Switch type | microswitch |
| Max contact resistance: | 50mΩ |
| Switching method | ON-(ON) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
