omron electronics

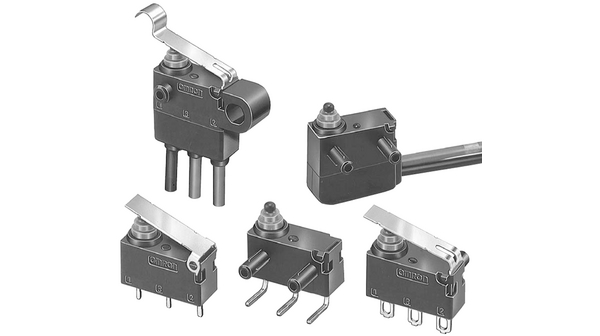

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 极掷配置 | SPDT |
| 交换机配置 | N.O./N.C. |
| 安装 | Screw Mount |
| 执行器风格 | Pin Plunger |
| 终端类型 | Wire Lead |
| 操作力 | 0.75 N |
| 最大额定电流 | 2@12VDC A |
| 最大交流电压额定值 | 125 V |
| 最大直流额定电压 | 42 V |
| 触点材料 | Gold Alloy |
| 机械寿命 | 1000000 |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Trays |
| 电气寿命 | 100000 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 85 |
| 最大直流额定电压 | 42 |
| 产品厚度 | 8.3 |
| 最大额定电流 | 2@12VDC |
| 最大交流电压额定值 | 125 |
| 操作力 | 0.75 |
| 最低工作温度 | -40 |
| 机械寿命 | 1000000 |
| 封装 | Bulk |
| Differential Travel | 0.010" (0.25mm) |
| 开关功能 | On-Mom |
| 额定电流 | 100mA (AC), 2A (DC) |
| 操作力，扭矩 | 76gf |
| 安装类型 | Chassis Mount |
| 额定电压 - AC | 125V |
| 端接类型 | Wire Leads |
| 电气寿命 | 100,000 Cycles |
| 工作职位 | 0.250" (6.4mm) |
| 超程 | 0.055" (1.4mm) |
| 执行器类型 | Round (Pin Plunger) |
| 额定电压 - DC | 12V |
| 防护等级 | IP67 - Dust Tight, Waterproof |
| 释放力 | 10gf |
| 电路 | SPDT |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 2 A @ 12 V dc |
| IP等级 | IP67 |
| 最高工作温度 | +85°C |
| 最低工作温度 | -40°C |
| 工厂包装数量 | 20 |
| 电压额定值AC | 125 V |
| 产品种类 | Basic / Snap Action Switches |
| 触点形式 | SPDT |
| 直流电额定电压 | 42 V |
| 系列 | D2HW |
| 执行器 | Plunger, Pin |
| 零件号别名 | 1608288 365888 |
| 类型 | Standard |
| RoHS | RoHS Compliant |
| Microswitch Type | :Snap Action |
| 开关操作 | :Off-On |
| Operating Force Max | :76gf |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :12V |
| Contact Current Max | :2A |
| Switch Terminals | :Wire Leaded |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Plunger |
| Contact Current AC Max | :100mA |
| Contact Current DC Max | :2A |
| Contact Voltage AC Max | :125V |
| Contact Voltage DC Max | :12V |
| Weight (kg) | 0.01 |
| Tariff No. | 85365005 |
| ActuatorType | PinPlunger |
| BodyStyle | Subminiature |
| ContactForm | SPDT |
| Current,Rating | 1Amp |
| DielectricStrength | 1500VAC |
| IPRating | IP67 |
| MountingHoleSize | 3mm |
| MountingType | Panel |
| NumberofPoles | 1 |
| NumberofPositions | 2 |
| 操作 | On-Off |
| 端子 | LeadWires |
| Voltage,Rating | 24VDC |
| AC contacts rating (at resistance load) | 0.1 A / 125 VAC |
| Leads | downwards, 300mm leads |
| Contacts configuration | SPDT |
| DC contacts rating (at resistance load) | 2 A / 12 VDC |
| Switching torque | 0.75N |
| Mechanical durability | 1000000cycles |
| Multiplicity | 1 |
| Switches features | without lever |
| Electrical life | 100000cycles |
| Gross weight | 9.26 g |
| Operating temperature | -40...85°C |
| 接触镀层 | gold plated |
| Stable positions number | 1-position |
| Body dimensions | 18.5 x 5.3 x 6.5mm |
| 密封 | IP67 |
| Switch type | microswitch |
| Max contact resistance: | 150mΩ |
| Switching method | ON-(ON) |
