Omron Electronics

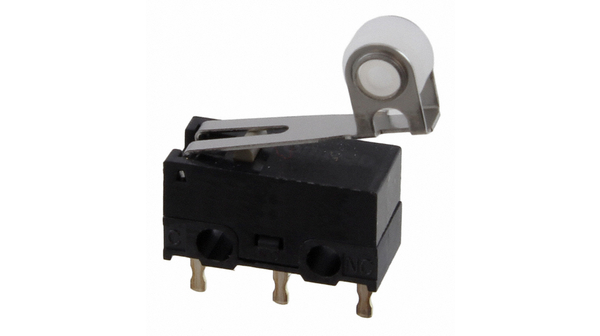

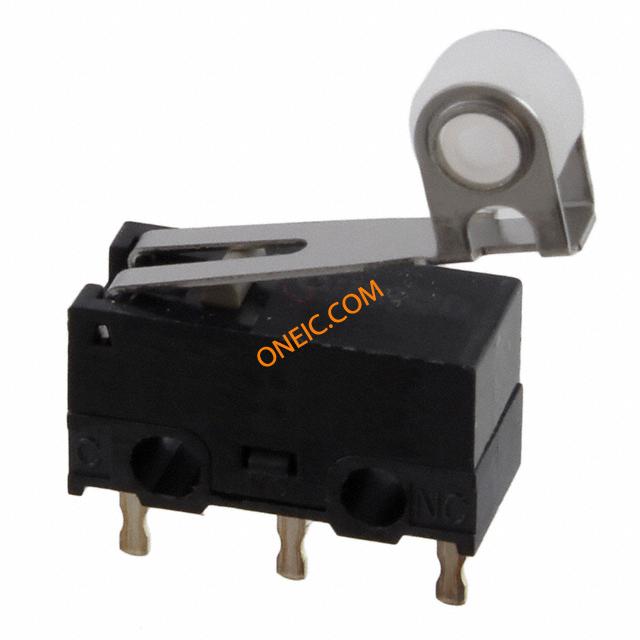

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | D2F-01L2 |
| 子类别 | Switch Snap Action |
| 交货期 | 98 Days |
| 封装 | Bulk |
| Differential Travel | 0.020" (0.5mm) |
| 开关功能 | On-Mom |
| 额定电流 | 100mA (DC) |
| 操作力，扭矩 | 80gf |
| 安装类型 | Through Hole |
| 端接类型 | PC Pin |
| 电气寿命 | 30,000 Cycles |
| 工作职位 | 0.650" (16.5mm) |
| 超程 | 0.022" (0.55mm) |
| 工作温度 | -25°C ~ 65°C |
| 执行器类型 | Lever, Roller |
| 标准包装 | 150 |
| 额定电压 - DC | 30V |
| 防护等级 | IP40 |
| 释放力 | 5gf |
| 机械寿命 | 1,000,000 Cycles |
| 电路 | SPDT |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 0.1 A @ 30 V dc |
| 触点材料 | Gold Alloy |
| IP等级 | IP40 |
| 最高工作温度 | +65°C |
| 最低工作温度 | -25°C |
| 操作力 | 0.78 N |
| 终端类型 | PCB |
| 工厂包装数量 | 150 |
| 产品种类 | Basic / Snap Action Switches |
| 系列 | D2F |
| 触点形式 | SPDT |
| 直流电额定电压 | 30 V |
| 执行器 | Roller Lever |
| 零件号别名 | 365757 9901965 |
| RoHS | RoHS Compliant |
| 工作温度范围 | -25C to 65C |
| 触点电镀 | Gold |
| 额定电流（最大值） | 0.1 A |
| 安装风格 | Through Hole |
| 工作温度最高摄氏度。 | 65C |
| 工作温度敏度。 | -25C |
| 执行器风格 | Hinge Roller Lever |
| 极掷配置 | SPDT |
| 开关功能配置 | N.O./N.C. |
| 产品长度（mm ） | 15.55 mm |
| 产品厚度（毫米） | 5.8 mm |
| 产品高度（mm ） | 18 mm |
| 直流额定电压（最大值） | 30V |
| Microswitch Type | :Snap Action |
| 开关操作 | :(Not Applicable) |
| Operating Force Max | :80gf |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :100mA |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Roller Lever |
| Approval Bodies | :CSA, UL |
| Contact Current @ Contact Voltage AC Max | :3A |
| Contact Current @ Contact Voltage DC Max | :2A |
| Contact Current AC | :3A |
| Contact Current DC Max | :100mA |
| 接触电阻 | :30mohm |
| Contact Voltage DC Max | :30V |
| Differential Travel Max | :0.05mm |
| 外部深度 | :12.8mm |
| External Length / Height | :6.5mm |
| 外宽 | :5.8mm |
| 固定中心 | :6.5mm |
| 绝缘电阻 | :100Mohm |
| Insulation Resistance Voltage | :500V |
| Lever Length | :12.8mm |
| No. of Electrical Operations | :30000 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-25°C |
| Over Travel Min | :0.55mm |
| Pre-travel | :0.5mm |
| Weight (kg) | 0.008 |
| Tariff No. | 85365007 |
| Lever length | 10mm |
| Leads | for PCB, straight |
| DC contacts rating (at resistance load) | 0.1 A / 30 VDC |
| Switching torque | 1.47N |
| Mechanical durability | 1000000cycles |
| Multiplicity | 1 |
| Switches features | with lever (with roller) |
| Contacts configuration | SPDT |
| Gross weight | 1.16 g |
| Operating temperature | -25...85°C |
| Switch type | microswitch |
| Stable positions number | 1-position |
| Body dimensions | 12.8 x 5.8 x 6mm |
| Terminal pitch | 5.08mm |
| 密封 | IP40 |
| spg | 250 |
| Collective package [pcs] | 250 |
| Switching method | ON-(ON) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
