omron electronics

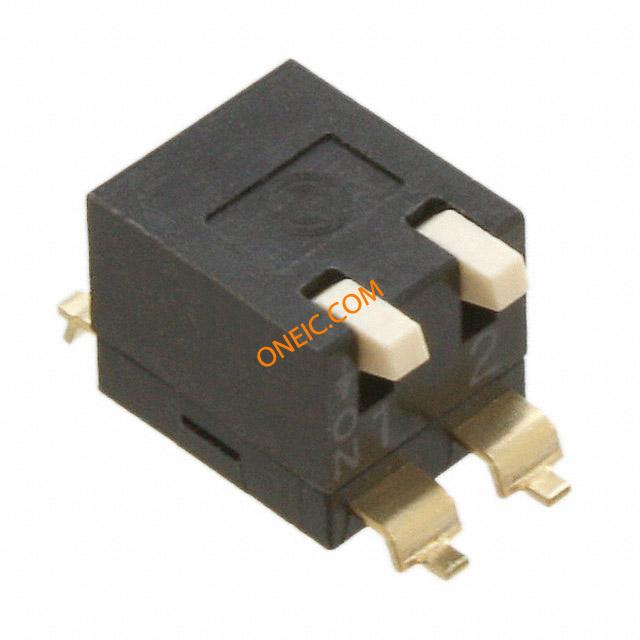

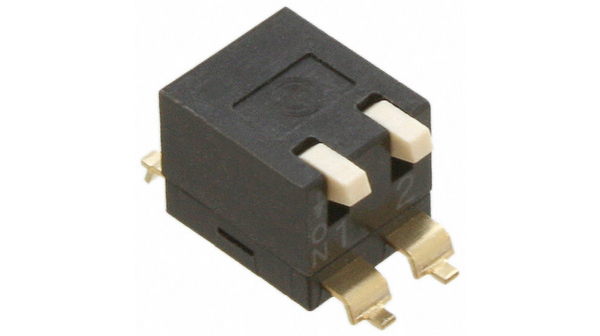

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 位置数 | 2 |
| 安装 | Surface Mount |
| 极掷配置 | SPST |
| 交换机配置 | OFF ON |
| 执行器风格 | Piano |
| 终端类型 | Gull Wing |
| 最大额定电流 | 0.025@24VDC A |
| 最大直流额定电压 | 24 V |
| 工作温度 | -20 to 70 °C |
| 标准包装 | Trays |
| 水洗 | No |
| 执行器类型 | Piano |
| 安装类型 | Surface Mount |
| 电路 | SPST |
| 触点额定电压 | 0.025A @ 24VDC |
| 定位 | Side Actuated |
| 触动器电平 | Raised |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 95 |
| 产品种类 | DIP Switches / SIP Switches |
| 端子节距 | 2.54 mm |
| 联系额定值 | 25 mA |
| 工作温度范围 | - 20 C to + 70 C |
| 系列 | A6TR/A6SR |
| 端接类型 | Through Hole |
| 直流电额定电压 | 24 V |
| 执行器 | Piano |
| 额定电流 | 25 mA |
| 零件号别名 | 1695839 677556 |
| 开关类型 | DIP |
| RoHS | RoHS Compliant |
| 联系配置 | :SPST |
| No. of Switch Positions | :2 |
| 节距 | :2.54mm |
| Contact Current DC Max | :25mA |
| Switch Mounting | :SMD |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Piano Key |
| 引线间距 | :2.54mm |
| 长度 | :4.98mm |
| No. of Positions | :2 |
| Weight (kg) | 0.00024 |
| Tariff No. | 85365007 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
