Omron Electronics

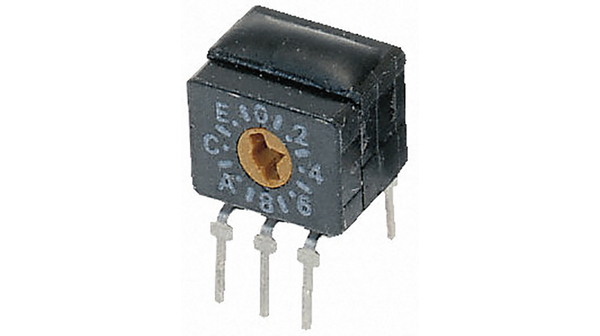

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器风格 | Flush Screwdriver |
| 电气寿命 | 2000 |
| 产品长度 | 9 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 产品厚度 | 7.62 |
| 安装 | Through Hole |
| 身体上的取向 | Right Angle |
| 产品高度 | 9.1 |
| 封装 | Box |
| 最大直流额定电压 | 30 |
| Terminal Pitch | 2.54 |
| 极掷配置 | SP16T |
| 密封 | O-Ring/Internal |
| 位置数 | 16 |
| 最低工作温度 | -20 |
| 最大额定电流 | 0.1@30VDC |
| 机械寿命 | 10000 |
| 终端类型 | PC Pins |
| 工业别名 | A6CV-16R |
| 子类别 | Switch DIP |
| 交货期 | 96 Days |
| 水洗 | No |
| 执行器类型 | Rotary for Tool |
| 安装类型 | Through Hole |
| 电路 | Hexadecimal |
| 标准包装 | 100 |
| 触点额定电压 | 0.1A @ 30VDC |
| 定位 | Side Actuated |
| 触动器电平 | Flush |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 触点额定电流 | 1 mA → 0.1 A |
| 最高工作温度 | +70°C |
| 机械寿命 | 10000Operations |
| 最低工作温度 | -20°C |
| 封装形式 | DIP |
| 工厂包装数量 | 100 |
| 系列 | A6C/A6CV |
| 产品种类 | DIP Switches / SIP Switches |
| 端子节距 | 2.54 mm |
| 联系额定值 | 100 mA |
| 工作温度范围 | - 20 C to + 70 C |
| 端接类型 | Solder Pin |
| 开关类型 | DIP |
| 触点电镀 | Gold |
| 封装/外壳 | DIP-16 |
| 执行器 | Rotary |
| 额定电流 | 100 mA |
| 零件号别名 | 363492 9901795 |
| RoHS | RoHS Compliant |
| 触点材料 | Stainless Steel |
| No. of Poles | :1 |
| No. of Switch Positions | :16 |
| 摆动角度 | :22.5° |
| Contact Current DC Max | :100mA |
| Contact Voltage AC Max | :250V |
| Contact Voltage DC Max | :30V |
| SVHC | :No SVHC (20-Jun-2013) |
| Angle | :22.5° |
| Contact Current @ Contact Voltage DC Max | :100mA |
| Contact Current @ Contact Voltage DC Min | :100µA |
| 接触电阻 | :100mohm |
| 外部深度 | :9mm |
| External Length / Height | :9.1mm |
| 外宽 | :7.1mm |
| Height Max | :9.1mm |
| Indexing Angle | :22.5° |
| 绝缘电阻 | :100Mohm |
| No. of Electrical Operations | :2000 |
| No. of Mechanical Operations | :10000 |
| No. of Positions | :16 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| 针脚长度 | :3.5mm |
| Weight (kg) | 0.084 |
| Tariff No. | 85365015 |
| 案例 | DIP6 |
| Leads | for PCB, angled |
| DC contacts rating (at resistance load) | 0.1 A / 30 VDC |
| Switching torque | 1Ncm |
| Multiplicity | 1 |
| Min insulation resistance | 100MΩ |
| Terminal pitch | 2.54mm |
| Gross weight | 0.8 g |
| Stable positions number | 16-position |
| Operating temperature | -20...70°C |
| Body dimensions | 9 x 7.1 x 7.1mm |
| Switches features | without knob |
| Encoding switch type | HEX/BCD |
| Number of positions | 16 |
| Max contact resistance: | 200mΩ |
| Switch type | encoding switch |
