Linear Technology

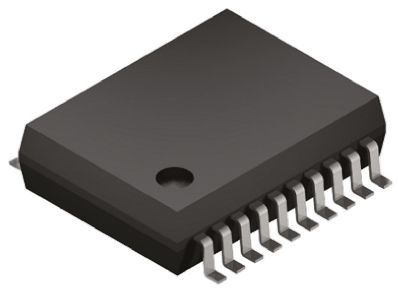

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 典型的单电源电压 | 5 |
| 安装 | Surface Mount |
| 数据传输拓扑 | Point-to-Point|Multipoint |
| 包装宽度 | 5.6(Max) |
| PCB | 20 |
| 筛选等级 | Commercial |
| 功能 | Line Transceiver |
| 欧盟RoHS指令 | Compliant |
| Maximum Supply Current | 25 |
| 电源类型 | Single |
| 收发器数量 | 1 |
| 最低工作温度 | 0 |
| 变送器数 | 1@RS-232|32@RS-485 |
| 供应商封装形式 | SSOP |
| 标准包装名称 | SSOP |
| 接收机信号类型 | Single-Ended|Differential |
| 最高工作温度 | 70 |
| ESD保护 | No |
| 最大单电源电压 | 5.25 |
| 接收器数 | 1@RS-232|32@RS-485 |
| 发射信号类型 | Single-Ended|Differential |
| 包装长度 | 7.5 |
| 引脚数 | 20 |
| 最小单电源电压 | 4.75 |
| 包装高度 | 2(Max) - 0.05(Min) |
| 接口标准 | EIA-562|RS-232|RS-422|RS-485 |
| 铅形状 | Gull-wing |
| 协议 | Multiprotocol |
| 安装类型 | Surface Mount |
| 标准包装 | 66 |
| 复式 | Half |
| 的驱动器/接收器数 | 2/2 |
| 供应商设备封装 | 20-SSOP |
| 接收器滞后 | 40mV |
| 封装 | Tube |
| 工作温度 | 0°C ~ 70°C |
| 电压 - 电源 | 5V |
| 数据传输速率 | 150KBd |
| 类型 | Transceiver |
| 其他名称 | LTC1387CGPBF |
| 封装/外壳 | 20-SSOP (0.209", 5.30mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 包装类型 | SSOP |
| 接口电路标准1 | RS-232 |
| 工作温度范围 | 0C to 70C |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| 电源电流 | 25 mA |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 4.75 V |
| 单电源电压（最大值） | 5.25 V |
| 单电源电压（典型值） | 5 V |
| Dual Supply Voltage (Max) | Not Required V |
| 删除 | Compliant |
| 设备类型 | :Transceiver |
| IC Interface Type | :RS232, RS485 |
| No. of Drivers | :2 |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5.25V |
| Driver Case Style | :SSOP |
| No. of Pins | :20 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :1387 |
| Line / Bus Driver / Receiver / Transceiver Type | :RS485 / RS232 |
| 工作温度范围 | :0°C to +70°C |
| Supply Voltage Range | :4.75V to 5.25V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423190 |
| 封装/外壳 | 20-SSOP (0.209", 5.30mm Width) |
| 案例 | SSOP20 |
| Multiplicity | 1 |
| Gross weight | 0.65 g |
| 电源电压 | 5V DC |
| Integrated circuit type | line transmitter-receiver |
| Collective package [pcs] | 66 |
| spg | 66 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
