Honeywell

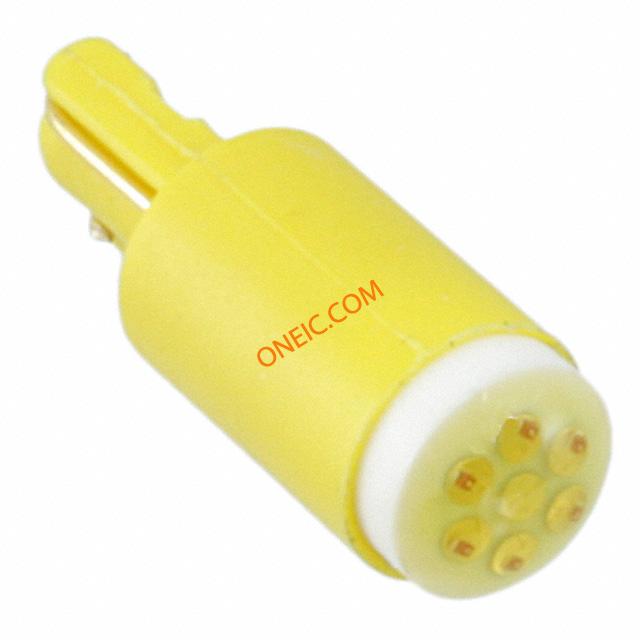

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Switch Accessories |
| RoHS | RoHS Compliant |
| 类型 | LEDs |
| 设计目的 | AML Series |
| 颜色 | Yellow |
| 系列 | AML |
| 欧盟RoHS指令 | Compliant |
| 子类别 | Switch Accessories |
| 交货期 | 56 Days |
| 电压 - 正向（Vf ）典型值 | 4V |
| 尺寸/尺寸 | T - 1 3/4 |
| 应用范围 | Incandescent Replacements, Indicator Lights |
| 基本类型 | Wedge |
| 标准包装 | 1 |
| 配置 | Single |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品类型 | AML LED |
| 工作温度 | 20 °C to 60 °C [4 °F to 140 °F] |
| 负载电流 | 50 mA |
| 使用系列 | 41549,41553,41556,41559,41562,41566,41570,41574,41578,41582,41586,41590,41594,41598,41602,41606 |
| 电压 | 4 |
| 评论 | For use with these AML switches and indicators equipped with lamp sockets. |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
