Honeywell

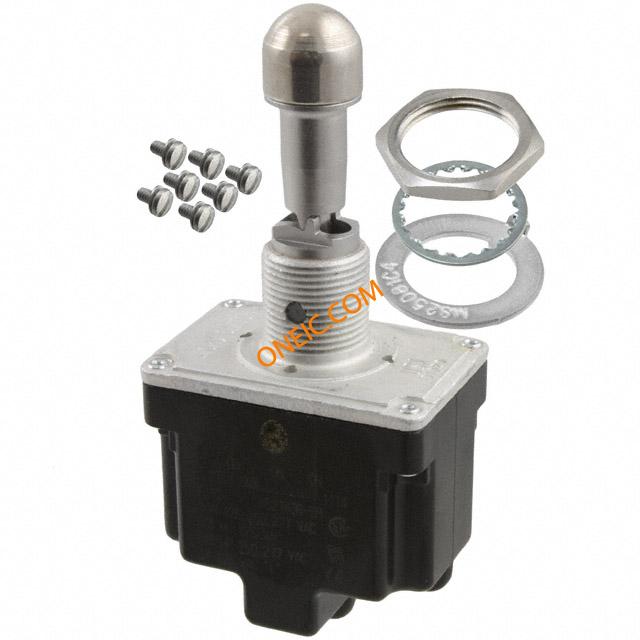

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 触点形式 | DPDT |
| 额定电流 | 20 A |
| 电压额定值AC | 277 V |
| 直流电额定电压 | 250 V |
| 端接类型 | Screw |
| 安装风格 | Panel |
| 触点电镀 | Silver Cadmium Oxide |
| 照明 | Non-Illuminated |
| 执行器 | Lever |
| 衬套尺寸 | 15/32-32 |
| 零件号别名 | MS27408-5M |
| 评论 | Silver cadmium oxide contacts |
| CircuitryOperating动作 | 127901 |
| 杠杆类型 | Locking |
| 系列名称 | TL |
| 安装 | Bushing 15/32 in |
| AmpereVoltage范围（电阻性负载） | 0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A to 10 A at 0.5 Vac to 277 Vac|0.5 A at |
| UNSPSC商品 | 30211908 Toggle switches |
| 电路 | DPDT |
| UNSPSC代码 | 30211908 |
| 端子 | Screw |
| 执手锁 | 127902 |
| ULCSA等级代码 | L192: 10 A-125, 250, 277 Vac; 1/4 Hp-125 Vac; 1/2 Hp-250, 277 Vac; 3 A-125 Vac " |
| 军用产品编号 | MS27408-5M |
| 电路 | DPDT |
| 开关功能 | On-On-Mom |
| 面板开孔尺寸 | Circular - 12.40mm Dia |
| 安装类型 | Panel Mount |
| 额定电压 - AC | 125V |
| 封装 | Bulk |
| 工作温度 | -65°C ~ 71°C |
| 执行器类型 | Locking Lever |
| 标准包装 | 1 |
| 防护等级 | Environment Proof |
| 衬套螺纹 | 15/32-32 |
| 执行器材质 | Nickel Plated |
| 促动器长度 | 26.67mm |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品类型 | MICRO SWITCH⢠Toggle Switch |
| Ampere/Voltage Range (Resistive Load) | 0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A to 10 A at 0.5 Vac to 277 Vac|0.5 A at 250 Vdc|0.75 A at 115 Vdc |
| 动作 | 3 position |
| Circuitry/Operating action | Bushing 15/32 in |
| MIL Spec Number | Locking |
| UL/CSA | Global |
