Honeywell

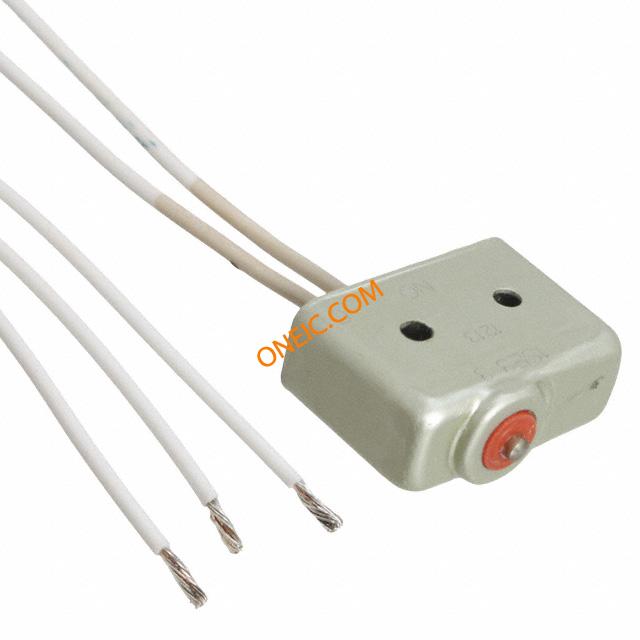

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | No |
| 触点形式 | SPST |
| 执行器 | Plunger, Pin |
| 额定电流 | 5 A |
| 电压额定值AC | 250 V |
| 直流电额定电压 | 30 V |
| 操作力 | 17 oz |
| 端接类型 | Screw |
| 安装 | Panel |
| 执行器风格 | Plunger |
| 产品长度 | 22.25 |
| 欧盟RoHS指令 | RoHS Not Applicable |
| 最大直流额定电压 | 30 |
| 产品厚度 | 8.79 |
| 交换机配置 | N.O. |
| 产品高度 | 18.92 |
| 极掷配置 | SPST |
| Maximum AC Voltage Rating | 250 |
| 终端类型 | Wire Lead |
| 最大额定电流 | 5@250VAC 30VDC |
| 执行器材质 | Steel |
| 操作力 | 4.73 |
| 子类别 | Switch Snap Action |
| 交货期 | 21 Days |
| 系列 | * |
| 标准包装 | 1 |
| RoHS指令 | Lead free / RoHS Compliant |
| 类型 | Basic |
| AC contacts rating (at resistance load) | 5 A / 250 VAC |
| Leads | downwards, 915mm leads |
| DC contacts rating (at resistance load) | 5 A / 30 VDC |
| Switching torque | 5N |
| Multiplicity | 1 |
| Switches features | without lever |
| Contacts configuration | SPST-NO |
| Gross weight | 1 g |
| Operating temperature | -53...105°C |
| Stable positions number | 1-position |
| Body dimensions | 20.3 x 6.3 x 12.7mm |
| 密封 | IP67 |
| Switch type | microswitch |
| Switching method | OFF-(ON) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
