grayhill

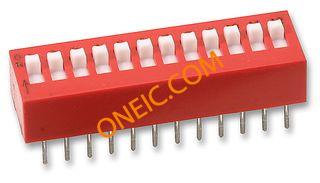

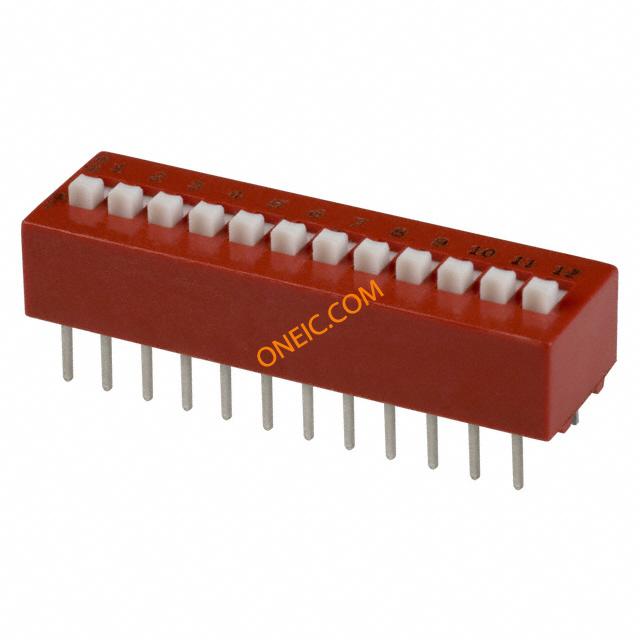

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 位置数 | 12 |
| 安装 | Through Hole |
| 极掷配置 | SPST |
| 交换机配置 | OFF ON |
| 执行器风格 | Raised Slide |
| 终端类型 | PC Pins |
| 最大额定电流 | 0.15@30VDC A |
| 最大直流额定电压 | 30 V |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Rail / Tube |
| 最大额定电流 | 0.15@30VDC |
| 最大直流额定电压 | 30 |
| 端子节距 | 2.54 |
| 欧盟RoHS指令 | Compliant |
| 触点电镀 | Gold/Nickel Barrier |
| 最低工作温度 | -40 |
| 机械寿命 | 2000/Switch |
| 电气寿命 | 2000/Switch |
| 产品长度 | 32.5 |
| 最高工作温度 | 85 |
| 身体上的取向 | Straight |
| 产品厚度 | 9.65 |
| 产品高度 | 8 |
| 封装 | Tube |
| 密封 | Tape(Polyester Film)/Base |
| 触点材料 | Copper Alloy |
| 水洗 | Yes |
| 执行器类型 | Standard |
| 安装类型 | Through Hole |
| 电路 | SPST |
| 触点额定电压 | 0.15A @ 30VDC |
| 定位 | Top Actuated |
| 其他名称 | GH7196 |
| 触动器电平 | Raised |
| RoHS指令 | Lead free / RoHS Compliant |
| 标准包装 | 1 |
| 开关类型 | :DIP |
| 联系配置 | :SPST |
| No. of Switch Positions | :12 |
| 节距 | :2.54mm |
| Contact Current DC Max | :4A |
| Switch Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Raised |
| 接触电阻 | :30mohm |
| 额定电流 | :4A |
| Dielectric Strength VDC | :500V |
| 外部深度 | :9.65mm |
| External Length / Height | :7.49mm |
| 绝缘电阻 | :5000Mohm |
| 引线长度 | :2.54mm |
| 引线间距 | :2.54mm |
| 长度 | :32.5mm |
| 材质 | :Thermoplastic UL94V0 |
| No. of Mechanical Operations | :20000 |
| No. of Positions | :12 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 引脚配置 | :DIL |
| Row Pitch | :7.62mm |
| 系列 | :78 |
| 开关操作 | :Off-On |
| Weight (kg) | 0.042 |
| Tariff No. | 85365019 |
