texas instruments
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Development Kit |
| 家庭 | TMP103 |
| 标准包装 | Boxed |
| 产品种类 | Temperature Sensor Development Tools |
| RoHS | No |
| 工具用于评估 | TMP103 |
| 接口类型 | I2C, SMBus |
| 工作电源电压 | 1.4 V to 3.6 V |
| 工作电源电流 | 3 uA |
| 最高工作温度 | + 125 C |
| 最低工作温度 | - 40 C |
| 工厂包装数量 | 1 |
| 欧盟RoHS指令 | RoHS Not Applicable |
| 技术 | Temperature and Humidity Sensors |
| 其他信息 | Schematic Diagramhttp://www.ti.com/lit/ml/sbor013/sbor013.pdf |
| 传感器类型 | Temperature |
| 嵌入式 | No |
| 灵敏度 | ±1°C |
| 供物品 | Board, Cables, Software |
| 电压 - 电源 | 5V, USB |
| 用IC /零件 | TMP103 |
| 接口 | I²C, USB |
| 其他名称 | 296-28391 |
| 检测范围 | -40°C ~ 125°C |
| RoHS指令 | Contains lead / RoHS non-compliant |
| 分类 | Development Kit |

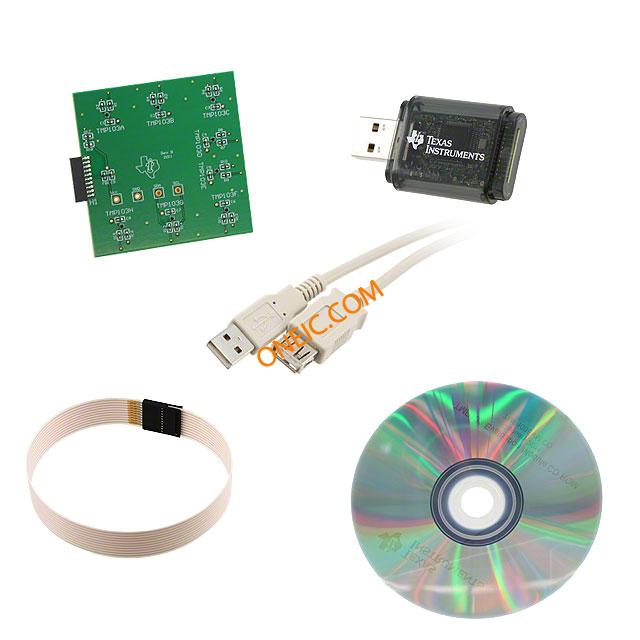

| 套装包括 | CD with Software, Extension Cable, SM-USB-DIG Platform Controller, TMP103EVM Test Board, USB Cable |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 1 |
| Tariff No. | 84733020 |
| Silicon Manufacturer | :Texas Instruments |
| Silicon Core Number | :TMP103 |
| Kit Application Type | :Sensing - Temperature |
| Application Sub Type | :Temperature Sensor |
| Leaded Process Compatible | :No |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
