texas instruments

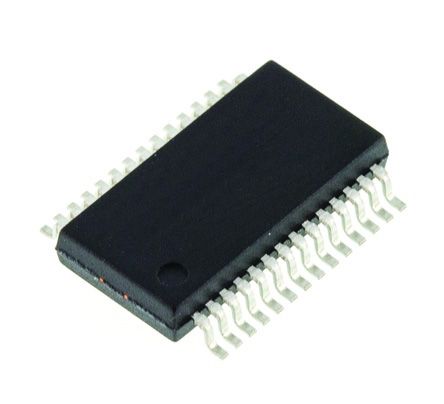

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 28SSOP |
| 家庭 | SRC4190 |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Rail / Tube |
| 标准包装名称 | SSOP |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 85 |
| Package Height | 2(Max) - 0.05(Min) |
| 安装 | Surface Mount |
| 封装 | Tube |
| PCB | 28 |
| Package Width | 5.6(Max) |
| 供应商封装形式 | SSOP |
| Package Length | 10.5(Max) |
| 最低工作温度 | -40 |
| 引脚数 | 28 |
| 铅形状 | Gull-wing |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 28-SSOP |
| 应用范围 | Broadcast, Consoles, Receivers |
| 类型 | Sample Rate Converter |
| 其他名称 | 296-15337-5 |
| 封装/外壳 | 28-SSOP (0.209", 5.30mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 工作电源电压 | 1.65 V to 3.6 V |
| 产品种类 | Audio Sample Rate Converters |
| 工作温度范围 | - 45 C to + 85 C |
| 系列 | SRC4190 |
| 封装/外壳 | SSOP-28 |
| 单位重量 | 0.007351 oz |
| 安装风格 | SMD/SMT |
| 电源电压 - 最大 | 3.6 V |
| 总谐波失真加噪声 | - 125 dB |
| 工厂包装数量 | 50 |
| 接口 | I2S |
| 电源电压 - 最小 | 1.65 V |
| RoHS | RoHS Compliant |
| Audio Control Type | :Sample Rate Converter |
| Supply Voltage Range | :3V to 3.6V |
| 控制接口 | :I2S, TDM |
| Audio IC Case Style | :SSOP |
| No. of Pins | :28 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| 带宽 | :106kHz |
| Base Number | :4190 |
| Control / Process Application | :Audio Distribution Systems, Broadcast Studio, Digital Audio Workstations, Digital Mixing Consoles |
| IC Generic Number | :4190 |
| 输出功率 | :225mW |
| 分辨率（位） | :24bit |
| 电源电流 | :66mA |
| Supply Voltage Max | :3.6V |
| Supply Voltage Min | :3V |
| 端接类型 | :SMD |
| Weight (kg) | 0.000206 |
| Tariff No. | 85411000 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | SSOP (DB) | 28 |
| Device Marking | View |
| Package QTY | Carrier | 50 | TUBE |
| Digital Audio Interface | I2S R L TDM |
| Control Mode | H/W |
| 输入 | |
| Package Group | SSOP |
| Audio Data Format | Normal I2S TDM |
| Reference Design | |
| 采样速率 | 212 |
| Digital Supply (up to 5 V) | 3 - 3.6 |
| Dynamic Range | 128 |
| # SRC Channels | 2 |
| 电源 | 3.3 |
| Datasheet | SBFS023B |
| Rating | Catalog |
| THD+N | -125 |
| TI Design |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
