texas instruments

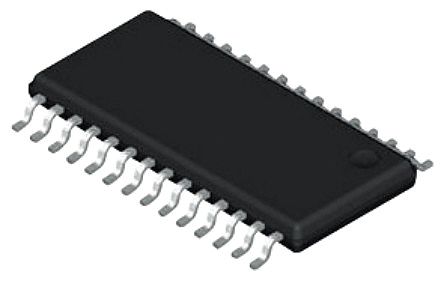

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 28TSSOP |
| 数据传输拓扑 | Point-to-Point |
| 接口标准 | EIA/TIA-232-F|RS-232|V.28 |
| 数据传输速率 | 500 Kbps |
| 功能 | Line Transmitter/Receiver |
| 接收器数 | 5 |
| 收发器数量 | 1 |
| 变送器数 | 3 |
| 发射信号类型 | Single-Ended |
| 变送器通讯方式 | RS-232 |
| 驱动方式 | 3-State |
| 典型的单电源电压 | 3.3|5 V |
| 标准包装 | Rail / Tube |
| 典型的单电源电压 | 3.3|5 |
| 安装 | Surface Mount |
| Package Width | 4.5(Max) |
| PCB | 28 |
| 筛选等级 | Industrial |
| 欧盟RoHS指令 | Compliant |
| 电源类型 | Single |
| 最低工作温度 | -40 |
| 供应商封装形式 | TSSOP |
| 标准包装名称 | TSSOP |
| 接收机信号类型 | Single-Ended |
| 最高工作温度 | 85 |
| 最大单电源电压 | 3.6|5.5 |
| Package Length | 9.8(Max) |
| 引脚数 | 28 |
| 最小单电源电压 | 3|4.5 |
| Package Height | 1.05(Max) |
| 封装 | Tube |
| 铅形状 | Gull-wing |
| 协议 | RS232 |
| 安装类型 | Surface Mount |
| 复式 | Full |
| 的驱动器/接收器数 | 3/5 |
| 供应商设备封装 | 28-TSSOP |
| 接收器滞后 | 500mV |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 电源 | 3 V ~ 5.5 V |
| 封装/外壳 | 28-TSSOP (0.173", 4.40mm Width) |
| 类型 | Transceiver |
| RoHS指令 | Lead free / RoHS Compliant |
| 封装/外壳 | 28-TSSOP (0.173", 4.40mm Width) |
| 外形尺寸 | 9.7 x 4.4 x 1.15mm |
| 身高 | 1.15mm |
| 长度 | 9.7mm |
| 最高工作温度 | +85 °C |
| 最低工作温度 | -40 °C |
| 每个线路驱动器数量 | 1 |
| 每行接收器数 | 1 |
| 包装类型 | TSSOP |
| 宽度 | 4.4mm |
| 工作电源电压 | 3.3 V, 5 V |
| 安装风格 | SMD/SMT |
| 输入/输出端数量 | 16 |
| 产品种类 | RS-232 Interface IC |
| 关机 | Yes |
| 工作温度范围 | - 40 C to + 85 C |
| 系列 | MAX3243E |
| 单位重量 | 0.004145 oz |
| 驱动器数 | 3 |
| RoHS | RoHS Compliant |
| 工厂包装数量 | 50 |
| 电源电流 | 1 mA |
| 传播延迟时间ns | 0.15 us |
| 接口电路标准1 | EIA/TIA-232-F/RS-232 |
| 工作温度范围 | -40C to 85C |
| 工作温度分类 | Industrial |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 3 V |
| 单电源电压（最大值） | 3.6/5.5 V |
| 单电源电压（典型值） | 3.3/5 V |
| Dual Supply Voltage (Max) | Not Required V |
| 删除 | Compliant |
| IC Interface Type | :RS232 |
| No. of Drivers | :3 |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :3243 |
| 设备类型 | :Line |
| No. of Pins | :28 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Supply Voltage Max | :5.5V |
| Supply Voltage Min | :3V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423190 |
| 案例 | TSSOP28 |
| Transmission rate | 1Mbps |
| Receivers amount | 5 |
| Transmitters quantity | 3 |
| Gross weight | 0.5 g |
| 电源电压 | 3...5.5V DC |
| Multiplicity | 5 |
| 接口 | RS232 |
| Integrated circuit type | transceiver |
| Collective package [pcs] | 1000 |
| spg | 1000 |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | TSSOP (PW) | 28 |
| Device Marking | View |
| Package QTY | Carrier | 50 | TUBE |
| IEC-61000-4-2 SUPPORT | IEC-61000-4-2 SUPPORT |
| Functional Diagram | |
| Power Saving Feature | Auto-Powerdown |
| Receivers Per Package | 5 |
| 逻辑电压 | 3.3 |
| HiRel | |
| Package Group | SOIC SSOP TSSOP VQFN |
| Reference Design | |
| Main Supply Voltage | 3.3 5 |
| ICC | 1 |
| Driver Supply Voltage | |
| Drivers Per Package | 3 |
| Datasheet | SLLS657D |
| Rating | Catalog |
| TI Design | |
| ESD HBM | 15 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
