texas instruments

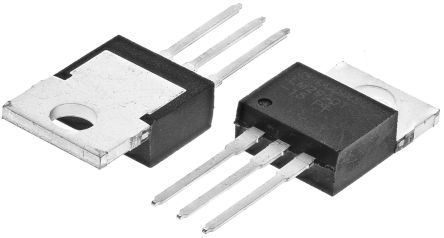

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 3TO-220 |
| 极性 | Negative |
| 类型 | Linear |
| 输出数 | 1 |
| 最小输入电压 | -26 V |
| 最大输入电压 | 0.3 V |
| 最大输出电流 | 1.8(Typ) A |
| 输出电压 | -15 V |
| 典型漏失电压@电流 | 0.1@100mA|0.6@1A V |
| 准确性 | ±5 % |
| 线路调整 | 60 mV |
| 负载调整率 | 50 mV |
| 最大静态电流 | 5 mA |
| 工作温度 | -40 to 125 °C |
| 安装 | Through Hole |
| 输出类型 | Fixed |
| 标准包装 | Rail / Tube |
| 典型漏失电压@电流 | 0.1@100mA|0.6@1A |
| 包装宽度 | 4.7(Max) |
| 最小输入电压 | -26 |
| PCB | 3 |
| 筛选等级 | Automotive |
| 欧盟RoHS指令 | Compliant |
| 最低工作温度 | -40 |
| 供应商封装形式 | TO-220 |
| 标准包装名称 | TO-220 |
| 最高工作温度 | 125 |
| 包装长度 | 10.16 |
| 特殊功能 | Current Limit|Short Circuit Prote... |
| 引脚数 | 3 |
| Maximum Dropout Voltage @ Current | 0.3@100mA|1@1A |
| 最大静态电流 | 5 |
| 包装高度 | 8.89(Max) |
| 输出电压 | -15 |
| 封装 | Rail |
| 最大输出电流 | 1.8(Typ) |
| 准确性 | ±5 |
| 标签 | Tab |
| 最大输入电压 | 0.3 |
| 铅形状 | Through Hole |
| 稳压器拓扑结构 | Negative Fixed |
| 安装类型 | Through Hole |
| 稳压器数量 | 1 |
| 供应商设备封装 | TO-220-3 |
| 电压 - 输出 | -15V |
| 电压 - 压降（标准） | 0.6V @ 1A |
| 电流 - 输出 | 1.8A |
| 封装/外壳 | TO-220-3 |
| 电压 - 电压 | Down to -26V |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 10.16 x 4.7 x 8.89mm |
| 身高 | 8.89mm |
| 长度 | 10.16mm |
| 最高工作温度 | +125 °C |
| 最低工作温度 | -40 °C |
| 包装类型 | TO-220 |
| 宽度 | 4.7mm |
| 输出电流 | 1.8 A |
| 工厂包装数量 | 45 |
| 系列 | LM2990 |
| 安装风格 | Through Hole |
| 最大输入电压 | 0.3 V |
| 漏失电压 - 最大 | 0.3 V |
| RoHS | RoHS Compliant |
| 工作温度范围 | -40C to 125C |
| 稳压器输出类型 | Fixed |
| 电压稳压器类型 | Linear |
| 极性类型 | Negative |
| Output Voltage Accuracy | �5 % |
| 工作温度分类 | Automotive |
| 输入电压 | 0.3 V |
| 输入电压（最小值） | -26 V |
| 静态电流（最大值） | 5 mA |
| 拓扑结构 | LDO |
| 弧度硬化 | No |
| 漏失电压@电流（典型值） | 0.1@100mA/0.6@1A |
| 漏失电压@电流（最大） | 0.3@100mA/1@1A |
| Input Voltage Min | :-26V |
| Input Voltage Max | :300mV |
| Output Voltage Nom. | :-15V |
| Dropout Voltage Vdo | :600mV |
| Voltage Regulator Case Style | :TO-220 |
| No. of Pins | :3 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Accuracy % | :5% |
| No. of Outputs | :1 |
| 工作温度范围 | :-40°C to +125°C |
| Output Current Max | :1A |
| Primary Input Voltage | :-26V |
| Supply Voltage Max | :-15.3V |
| Supply Voltage Min | :-1V |
| Weight (kg) | 0.12 |
| Tariff No. | 85411000 |
| 案例 | TO220 |
| Radiator thickness | 1.22...1.32mm |
| Kind of voltage regulator | LDO, fixed |
| 输出电压 | -15V |
| 输出电流 | 1.8A |
| Package type | tube |
| Multiplicity | 1 |
| Gross weight | 3 g |
| Integrated circuit type | voltage stabiliser |
| Collective package [pcs] | 12 |
| spg | 12 |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | -40 to 125 |
| Package | Pins | TO-220 (NDE) | 3 |
| Device Marking | View |
| Package QTY | Carrier | 45 | TUBE |
| New Flag | |
| Functional Diagram | |
| Iout2 | |
| HiRel | |
| Fixed Output Options | -5 -5.2 -12 -15 |
| 输出电压 | -5 |
| Package Group | DDPAK/TO-263 TO-220 |
| Output Options | Fixed Output Negative Output |
| Reference Design | |
| 附加功能 | Overcurrent Protection Thermal Shutdown |
| Output Capacitor Type | |
| Iout | 1 |
| Datasheet | SNVS093G |
| Vout2 | |
| 噪音 | |
| Vdo | 600 |
| Rating | Catalog |
| TI Design | |
| Iq | 1 |
| PSRR @ 100KHz | |
| Vin | 0.3 |
| Regulated Outputs | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
