B&K Precision

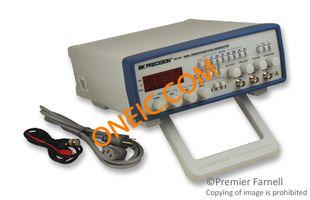

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 功能 | Sweep |
| 显示器类型 | LED |
| 频率范围 | 0.5Hz ~ 5MHz |
| 频率 - 最大 | 5MHz |
| 通道数 | 1 |
| 电源电压 | 120, 230V |
| 标准包装 | 1 |
| 信号类型 | Sine, Square, Triangle, Ramp, Pulse |
| 类型 | Function Generator, Analog |
| 其他名称 | BK4012A |
| 产品种类 | Function Generators & Synthesizers |
| AC电源电压 | For B&K Precision products requiring AC input, please consult the accompanying User Manual before plugging the unit into mains power. Most products are configured for US mains/110VAC input but have a selectable input for 220VAC input. In some cases this may require a fuse change. |
| 电缆类型 | North American Power Cord Included |
| 单位重量 | 8 lbs |
| 频率 | 0.5 Hz to 5 MH |
| 设备类型 | Function generator |
| 零件号别名 | EXD |
| RoHS | RoHS Compliant By Exemption |
| 标准包装 | 1 |
| Brand/Series | 4000ASeries |
| 配置 | Bench |
| 显示 | 4DigitLED |
| Frequency,Output | 0.5Hzto5MHz |
| Impedance,Output | 50Ohms |
| ModulationType | Linear/LogSweep |
| OutputAmplitude | 20dB(Typ.) |
| TypeofGenerator | SweepFunction |
| Voltage,Rating | 0to10V(Input) |
| 可变后掠 | No |
| 衰减 | -20dB |
| 外形尺寸 | 12.25 x 10.5 x 4.5in |
| Brand Name | BK Precision |
| Minimum Frequency (Square, Pulse and Arbitrary Waveform) | 0.5Hz |
| Maximum Frequency (Triangle/Saw) | 5MHz |
| Maximum Frequency (Sinewave) | 5MHz |
| 型号 | 4012A |
| 身高 | 4.5in |
| 宽度 | 10.5in |
| 长度 | 12.25in |
| 产品类型 | Function Generator |
| 内部线性和对数扫描 | Yes |
| 时基精度 | ±10ppm |
| Minimum Frequency (Triangle/Saw) | 0.5Hz |
| Minimum Frequency (Sinewave) | 0.5Hz |
| 数字振幅和偏移 | Yes |
| Maximum Frequency (Square, Pulse and Arbitrary Waveform) | 5MHz |
