analog devices

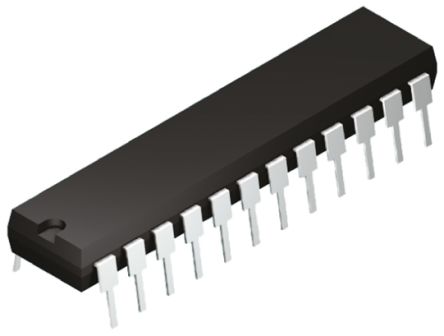

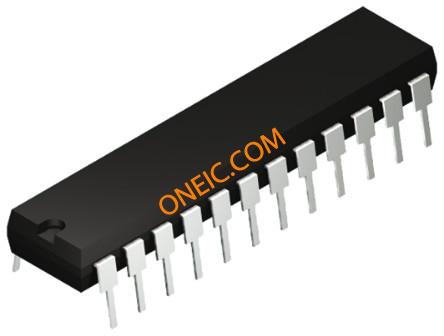

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 24PDIP |
| 分辨率 | 12 Bit |
| 模拟量输入数 | 1 |
| 建筑 | SAR |
| 数字接口类型 | Parallel |
| 输入类型 | Voltage |
| 极性输入电压 | Unipolar |
| 标准包装 | Rail / Tube |
| ADC的数量 | 1 |
| 安装 | Through Hole |
| 包装宽度 | 6.61 |
| PCB | 24 |
| 筛选等级 | Commercial |
| 最大双电源电压 | -5.25/15.75 |
| 欧盟RoHS指令 | Compliant |
| 差分输入 | No |
| 电压电源 | Dual |
| 输入电压 | 5V |
| 最低工作温度 | -40 |
| 供应商封装形式 | PDIP |
| 标准包装名称 | PDIP |
| 转换器类型 | General Purpose |
| 最高工作温度 | 85 |
| 最小双电源电压 | -4.75/14.25 |
| Typical Dual Supply Voltage | -5/15 |
| 输入信号类型 | Single-Ended |
| 包装长度 | 31.19(Max) |
| 引脚数 | 24 |
| 包装高度 | 3.3(Max) |
| 微分非线性 | ±1LSB |
| 参考电压 | External |
| 铅形状 | Through Hole |
| 位数 | 12 |
| 安装类型 | Through Hole |
| 数据接口 | Parallel |
| 采样率（每秒） | 10k |
| 供应商设备封装 | 24-PDIP |
| 封装 | Tube |
| 工作温度 | -40°C ~ 85°C |
| 输入数目和类型 | 1 Single-Ended, Bipolar |
| 转换器数量 | 1 |
| 封装/外壳 | 24-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 31.19 x 6.61 x 3.3mm |
| 身高 | 3.3mm |
| 长度 | 31.19mm |
| 最高工作温度 | +85 °C |
| 最低工作温度 | -40 °C |
| 包装类型 | PDIP |
| 典型双电源电压 | 15 V, -5 V |
| 宽度 | 6.61mm |
| 工作电源电压 | 5 V, 15 V |
| 转换速率 | 100 us |
| 工厂包装数量 | 15 |
| 最大功率耗散 | 875 mW |
| 系列 | AD7578 |
| 安装风格 | Through Hole |
| 通道数 | 1 Channel |
| 接口类型 | Parallel |
| 封装/外壳 | PDIP-24 |
| RoHS | RoHS Compliant |
| 分辨率（位） | :12bit |
| Supply Voltage Min | :5V |
| Supply Voltage Max | :15V |
| 电源电流 | :7.5mA |
| Digital IC Case Style | :DIP |
| No. of Pins | :24 |
| Input Channel Type | :Single Ended |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| A/D / D/A Features | :CMOS, Microprocessor Compatible, Parallel O/P, Successive Approximation |
| Base Number | :7578 |
| Conversion Time | :100µs |
| IC Case Style | :DIP |
| IC Generic Number | :7578 |
| 线性误差 | :1% |
| Linearity Error ADC / DAC + | :1LSB |
| Linearity Error ADC / DAC - | :1LSB |
| Logic Function Number | :7578 |
| No. of Bits | :12 |
| No. of Channels | :1 |
| 工作温度范围 | :-40°C to +85°C |
| Power Dissipation Ptot Max | :75mW |
| Supply Voltage Range - Analogue | :± 4.75V to ± 5.25V, 14.25V to 15.75V |
| Weight (kg) | 0.000001 |
| Tariff No. | 85423190 |
