Analog Devices

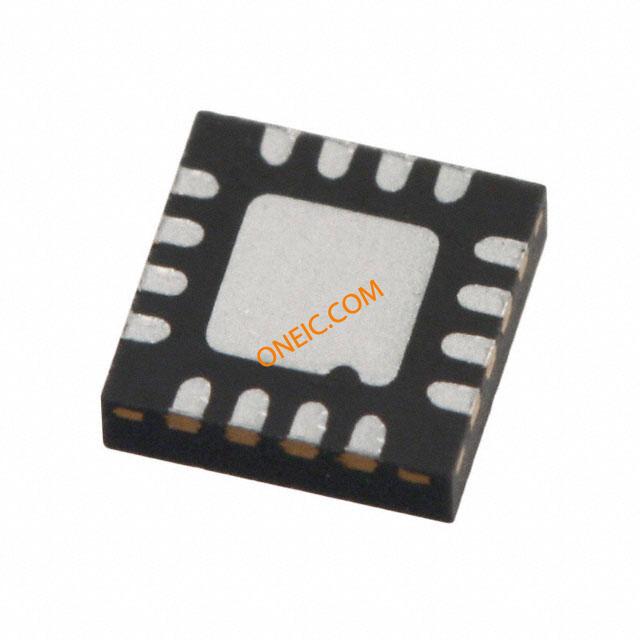

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Standard Package Name | LFCSP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Package Height | 0.73 |
| Mounting | Surface Mount |
| Packaging | Tape and Reel |
| PCB | 16 |
| Package Width | 3 |
| Supplier Package | LFCSP EP |
| Package Length | 3 |
| Minimum Operating Temperature | -40 |
| Pin Count | 16 |
| Lead Shape | No Lead |
| Current - Output / Channel | 30mA |
| Amplifier Type | RF/IF Differential |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 7GHz |
| Standard Package | 1,500 |
| Supplier Device Package | 16-LFCSP-WQ (3x3) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 80mA |
| Voltage - Supply, Single/Dual (±) | 2.8 V ~ 5.2 V |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Slew Rate | 11000 V/µs |
| Current - Input Bias | 5µA |
| Number of Circuits | 1 |
| rohs | Lead free / RoHS Compliant |
| Other Names | ADL5565ACPZ-R7CT |
| Operating Supply Voltage | 5 V |
| Type | RF/IF DIfferential |
| Maximum Power Dissipation | 525 mW |
| Series | ADL5565 |
| Noise Figure | 8.7 dB |
| Mounting Style | SMD/SMT |
| P1dB | 12.8 dBm |
| Test Frequency | 100 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Supply Current | 80 mA |
| Output Intercept Point | 53 dBm |
| RoHS | RoHS Compliant |
| Gain | :15.5dB |
| Noise Figure Typ | :10.24dB |
| RF IC Case Style | :LFCSP |
| No. of Pins | :16 |
| Supply Voltage Min | :2.8V |
| Supply Voltage Max | :5.2V |
| RF Type | :- |
| Operating Temperature Min | :-40°C |
| MSL | :- |
| Weight (kg) | 0 |
| Tariff No. | 85423300 |
| Frequency Min | :10MHz |
| Frequency Max | :6GHz |
| Operating Temperature Max | :85°C |
| SVHC | :No SVHC (20-Jun-2013) |
