te connectivity / amp

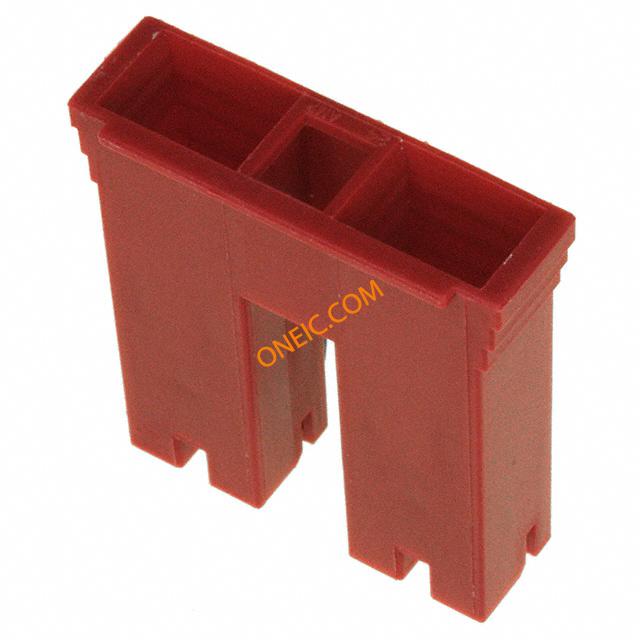

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Type | Housing |
| Pitch | 15.11 mm |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Gender | RCP |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Comment | Designed for Water Valve Coil Connector.; Accepts either Positive-Lock or Stand |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Flammability Rating | UL 94V-2 |
| Position Keyed | None |
| Color | Red |
| CSA Certified | Yes |
| Brand | AMP |
| Material | Nylon |
| Keyed | No |
| UL Rating | Recognized |
| Product Type | Receptacle Housing |
| Tab Fit (mm in) | 6.35 x 0.81 [.250 x .032] |
| Receptacle Style | Straight |
| Line | FASTON .250 |
| Centerline (mm in) | 15.11 [0.595] |
| RoHSELV Compliance History | Always was RoHS compliant |
| Number of Positions | 2 |
| Style | Housing |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Size | 0.250" (6.35mm) |
| Note | Contacts Not Provided |
| For Use With/Related Products | 0.250" (6.35mm) Quick Connects |
| Stacking Direction | Side to Side |
| Terminal Type | Quick Connect, Disconnect |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 3000 |
| Product | Terminal Housings |
| Product Category | Terminals |
| Series | MK |
| Termination Style | Crimp |
| Mounting Angle | Straight |
| Stud / Tab Size | 6.35 mm x 0.81 mm |
| RoHS | RoHS Compliant |
| 壳体颜色 | 红色 |
| Insulated | Yes |
| 端子和接头种类 | Receptacle |
| 针数 | 2 |
| 封装方法 | 包装 |
| 盖型 | With |
| 封装数量 | 1 |
| 锁板颜色 | With |
| 连接至 | FASTON Terminals |
| Connector System | 线到板, 线到线 |
| 长度 (in) | .475 |
| Housing Type | Receptacle Housing |
| 外壳材料 | 尼龙 6/6 |
| 极化 | 是 |
| Terminates To | Wire/Cable |
| 产品类型 | 端子护套 |
| UL 易燃性等级 | UL 94V-2 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
